Lenovo ThinkPad W540 (20BH002CMD) General, Display, Memory, Battery, Power, Software, Audio. 72 properties. Comparisons. Similar objects.

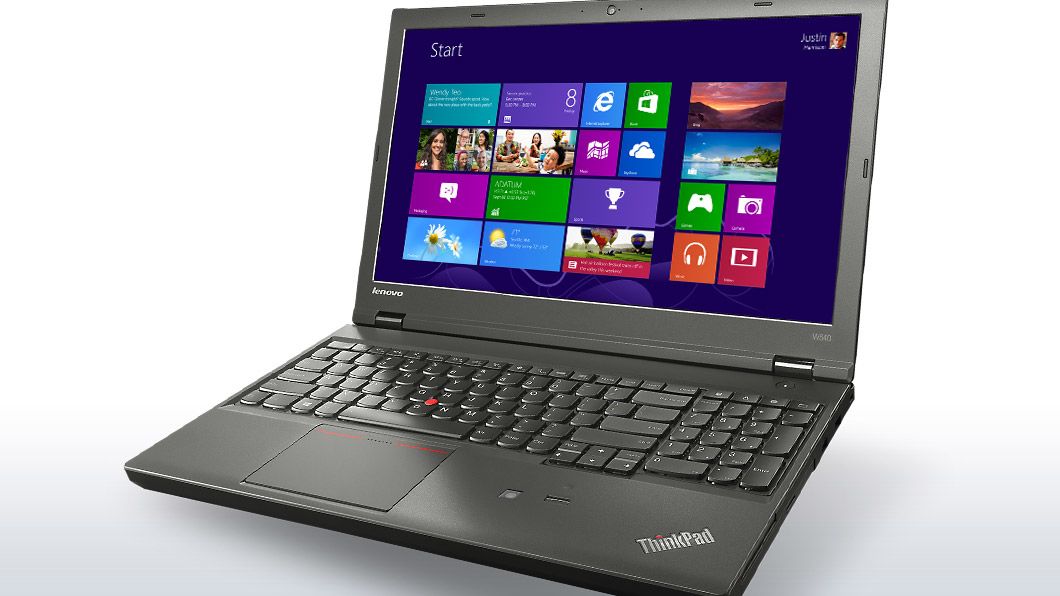

Lenovo ThinkPad W540 (20BH002CMD) [+]Compare [E]dit [H]istory

Object «Lenovo ThinkPad W540 (20BH002CMD)» was created due to

Electronics

Laptops

Add new object to «Lenovo ThinkPad W540 (20BH002CMD)» or move existing objects here.

Object «Lenovo ThinkPad W540 (20BH002CMD)» has attributes [Show empty attributes][Hide empty attributes]

Attribute	Value
General
Model	Lenovo ThinkPad W540
Product code	20BH002CMD
Design
Product colour	Black
Form factor	Clamshell
Brand	Lenovo
Family	ThinkPad
Series	W
Model name	W540
Part number	20BH002CMD
Market positioning	Add
Release year	2013 year
Processor
Processor manufacturer	Add
Processor family	4th gen Intel Core i7
Processor frequency	2.7 GHz
Processor boost frequency	3.7 GHz
Processor model	i7-4800MQ
Processor (link)	Add
Processor cores	4
Processor threads	8
Processor lithography	22 Nm
Processor socket	PGA946
Processor cache	6 MB
Memory
Internal memory type	DDR3-SDRAM
Maximum internal memory	32 GB
Memory clock speed	1,600 MHz
Internal memory	8 GB
Display
Display diagonal	15.6 inch
Panel type	Add
HD type	Full HD
LED backlight	+
Touchscreen	-
Maximum refresh rate	Add
Dual-screen	Add
Display resolution	1920 x 1080 pixels
Graphics
On-board graphics adapter	+
Discrete graphics adapter model ^#	NVIDIA Quadro K1100M
Discrete graphics adapter model (link)	Add
Discrete graphics memory type	Add
Discrete graphics adapter	+
Discrete graphics adapter memory	2 GB
On-board graphics adapter base frequency	400 MHz
Maximum on-board graphics adapter memory	74 GB
On-board graphics adapter model	Intel HD Graphics 4600
Storage
Total storage capacity	180 GB
Number of SSDs installed	1
SSD capacity	180 GB
Card reader integrated	+
HDD capacity	Add
SSD form factor	Add
Storage media	SSD
Optical drive	+
Networking
Wi-Fi standards	ieee 802.11a ieee 802.11ac ieee 802.11b ieee 802.11g ieee 802.11n
Bluetooth	+
Ethernet LAN	+
Ethernet LAN data rates	10 Mbit/s 100 Mbit/s 1000 Mbit/s
Wi-Fi	+
4g	Add
3g	-
Bluetooth version	4.0
Ports and interfaces
USB 3.x Type-A ports	2
USB 3.x Type-C ports	Add
Combo headphone/mic port	+
USB 2.0 ports	2
Docking connector	+
USB Sleep-and-Charge	+
DVI port	-
USB 2.0 Type-C ports	Add
USB Type-C thunderbolt 3 ports	Add
HDMI ports quantity	Add
Ethernet LAN (RJ-45) ports	1
Audio
Speaker power	1 W
Audio chip	Add
Built-in microphone	+
Camera
Front camera	+
Front camera resolution (numeric)	Add
Front camera HD type	Add
Front camera resolution	1280 x 720 pixels
Keyboard
Numeric keypad	+
Keyboard backlit	+
Full-size keyboard	Add
Pointing device	Add
Software
Operating system installed	Windows 8 Pro
Operating system architecture	64 bit
Battery
Battery capacity (watt-hours)	99 Wh
Battery capacity	Add
Battery life (max)	11.1 h
Weight and dimensions
Weight	2.7 kg
Height	Add
Depth	248.1 mm
Width	376.6 mm
Power
AC adapter power	170 W
Security
Cable lock slot	-
Fingerprint reader	+
Trusted platform module (TPM)	+
