| Attribute | Value |
| General |
| Production from | 2004 year |
| Make | Cagiva |

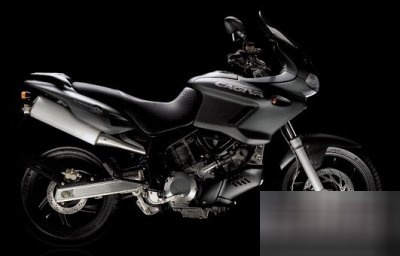

| Model | Cagiva Navigator 1000 |
| Category | Enduro / offroad |
| Engine and transmission |
| Engine type | Twin, four-stroke |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Engine details | Add |
| Displacement | 996 cm³ |
| Power | 70.8 kw |
| Max RPM | Add |
| Fuel consumption | Add |
| Cooling system | Liquid |
| Transmission type,final drive | Chain |
| Torque | 88 Nm |
| Bore | 98 mm |
| Stroke | 66 mm |
| Gearbox | 6-speed |
| Greenhouse gases | Add |
| Fuel control | Add |
| Emission details | Add |
| Driveline | Add |
| Ignition | Add |
| Clutch | Add |
| Lubrication system | Add |
| Compression | 11.3:1 |
| Exhaust system | Add |
| Chassis |
| Front suspension | Telescopic hydraulic fork with advanced axle |
| Rear suspension | Marzocchi progressive type with single hydraulic shock absorber; spring preload and rebound adjustment |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Diameter | 240 mm |
| Frame type | High strength steel tubes trellis type |
| Front tyre | 110/90-19 |
| Rear tyre | 140/80-17 |
| Seat | Add |
| Wheels | Add |
| Front wheel travel | 150 mm |
| Rear wheel travel | 160 mm |
| Trail | Add |
| Rake (fork angle) | Add |
| Other |
| Battery capacity | Add |
| Starter | Add |
| Color options | |
| Carrying capacity | Add |
| Light | Add |
| Instruments | Add |
| Electrical Voltage | Add |
| Dimensions |
| Wheelbase | Add |
| Kerb weight | Add |
| Dry weight | 210 kg |
| Power/weight ratio | 0.3371 |
| Overall height | Add |
| Overall length | Add |
| Overall width | Add |
| Seat height | 850 mm |
| Alternate seat height | Add |
| Ground clearance | 150 mm |
| Front percentage of weight | Add |
| Rear percentage of weight | Add |
| Performance |
| Top speed | Add |
| Acceleration 0-100 km/h | Add |
| Length | Add |
| Reserve fuel capacity | Add |
| Fuel capacity | 20.06 l |
| Oil capacity | Add |
| Width | Add |
| Height | Add |
