| Attribute | Value |
| General |
| Production from | 2004 year |
| Make | Cagiva |

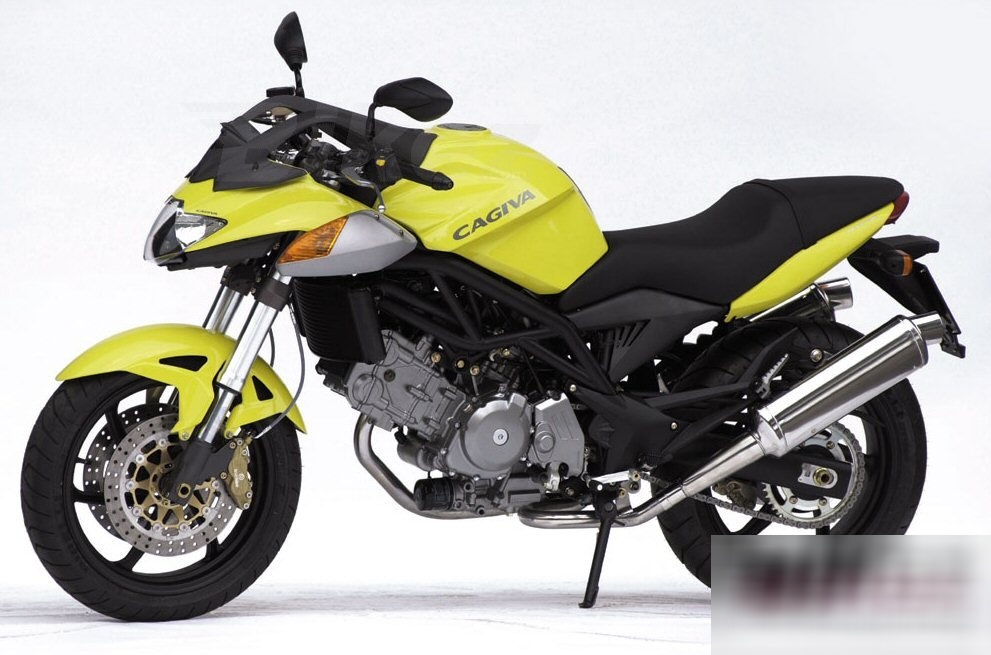

| Model | Cagiva V-Raptor 650 |
| Category | Naked bike |
| Engine and transmission |
| Engine type | Twin, four-stroke |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Engine details | Add |
| Displacement | 645 cm³ |
| Power | 51.1 kw |
| Max RPM | Add |
| Fuel consumption | Add |
| Cooling system | Liquid |
| Transmission type,final drive | Chain |
| Torque | 63.5 Nm |
| Bore | 81 mm |
| Stroke | 62.6 mm |
| Gearbox | 6-speed |
| Greenhouse gases | Add |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Emission details | Add |
| Driveline | Add |
| Ignition | Add |
| Clutch | Add |
| Lubrication system | Add |
| Compression | 11.5:1 |
| Exhaust system | Add |
| Chassis |
| Front suspension | Upside Down fully adjustable hydraulic fork |
| Rear suspension | Progressive single shock with atjustable rebound - compression damping and spring preload. Double sided swingarm. |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Diameter | 220 mm |
| Frame type | High strength steel tubular frame |
| Front tyre | 120/70-17 |
| Rear tyre | 160/60-17 |
| Seat | Add |
| Wheels | Add |
| Front wheel travel | 120 mm |
| Rear wheel travel | 138 mm |
| Trail | Add |
| Rake (fork angle) | Add |
| Other |
| Battery capacity | Add |
| Starter | Add |
| Color options | |
| Carrying capacity | Add |
| Light | Add |
| Instruments | Add |
| Electrical Voltage | Add |
| Dimensions |
| Wheelbase | Add |
| Kerb weight | Add |
| Dry weight | 185 kg |
| Power/weight ratio | 0.2762 |
| Overall height | Add |
| Overall length | Add |
| Overall width | Add |
| Seat height | 800 mm |
| Alternate seat height | Add |
| Ground clearance | 165 mm |
| Front percentage of weight | Add |
| Rear percentage of weight | Add |
| Performance |
| Top speed | Add |
| Acceleration 0-100 km/h | Add |
| Length | Add |
| Reserve fuel capacity | Add |
| Fuel capacity | 19.3 l |
| Oil capacity | Add |
| Width | Add |
| Height | Add |
