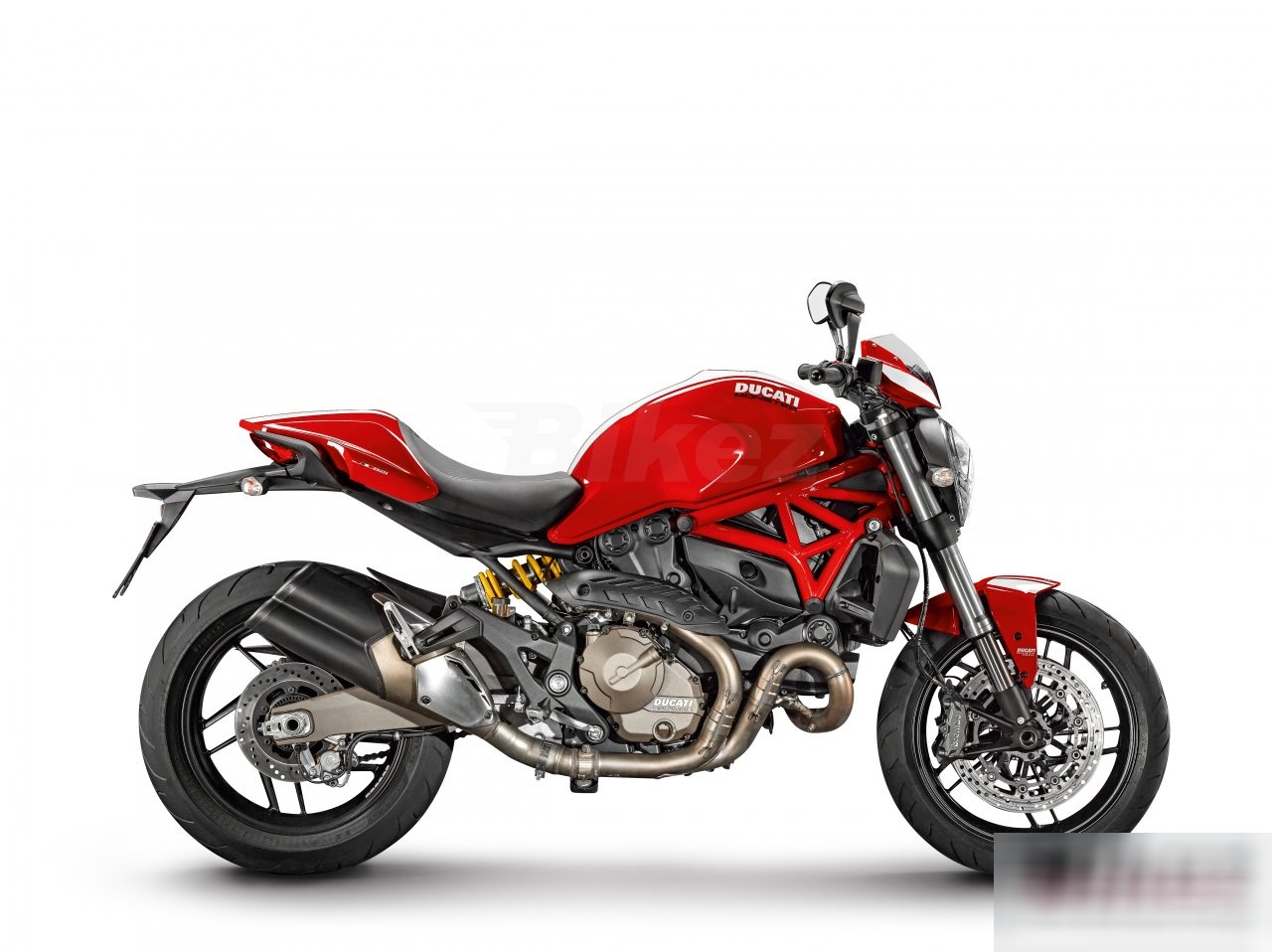

Ducati Monster 821 Stripe 2015 [+]Compare [E]dit [H]istory

Object «Ducati Monster 821 Stripe 2015» was created due to

Add new object to «Ducati Monster 821 Stripe 2015» or move existing objects here.

Object «Ducati Monster 821 Stripe 2015» has attributes

Attribute Value
General
Production from 2015 year
Make Ducati
Model Ducati Monster 821 Stripe
Category Naked bike
Engine and transmission
Engine type V2, four-stroke
Valves per cylinder 4
Fuel system Injection. 53mm throttle bodies with full Ride by Wire
Engine details L-twin
Displacement 821 cm³
Power 81.8 kw
Max RPM Add
Fuel consumption Add
Cooling system Air
Transmission type,final drive Chain
Torque 89.4 Nm
Bore 88 mm
Stroke 67.5 mm
Gearbox 6-speed
Greenhouse gases Add
Fuel control Desmodromic valve control
Emission details Euro 3
Driveline Add
Ignition Add
Clutch APTC slipper and self-servo wet multiplate clutch with control cable
Lubrication system Add
Compression 12.8:1
Exhaust system Stainless steel muffler and aluminium and cap; lightweight 2-1 system with catalytic converter with 2 lambda probes
Chassis
Front suspension 43mm upside-down forks
Rear suspension Progressive linkage with adjustable monoshock. Aluminium double-sided swingarm
Front brakes Double disc. Semi-floating discs, radially mounted Monobloc Brembo M4-32 callipers, 4-pistons, axiial pump with ABS as standard
Rear brakes Single disc. 2-piston floating calliper with ABS as standard equipment
Diameter 245 mm
Frame type Tubular steel Trellis frame attached to the cylinders head
Front tyre 120/70-ZR17
Rear tyre 180/55-ZR17
Seat Add
Wheels Add
Front wheel travel 130 mm
Rear wheel travel 140 mm
Trail 93 mm
Rake (fork angle) 24.3 degree
Other
Battery capacity Add
Starter Add
Color options
  • red/white
Carrying capacity Add
Light Add
Instruments LCD
Electrical Voltage Add
Dimensions
Wheelbase Add
Kerb weight 205.5 kg
Dry weight 179 kg
Power/weight ratio 0.4557
Overall height 1,055 mm
Overall length 2,170 mm
Overall width 800 mm
Seat height 785 mm
Alternate seat height 810
Ground clearance Add
Front percentage of weight Add
Rear percentage of weight Add
Performance
Top speed Add
Acceleration 0-100 km/h Add
Length Add
Reserve fuel capacity Add
Fuel capacity 17.5 l
Oil capacity Add
Width Add
Height Add
