| Attribute | Value |
| General |
| Production from | 2004 year |
| Make | Harley-Davidson |

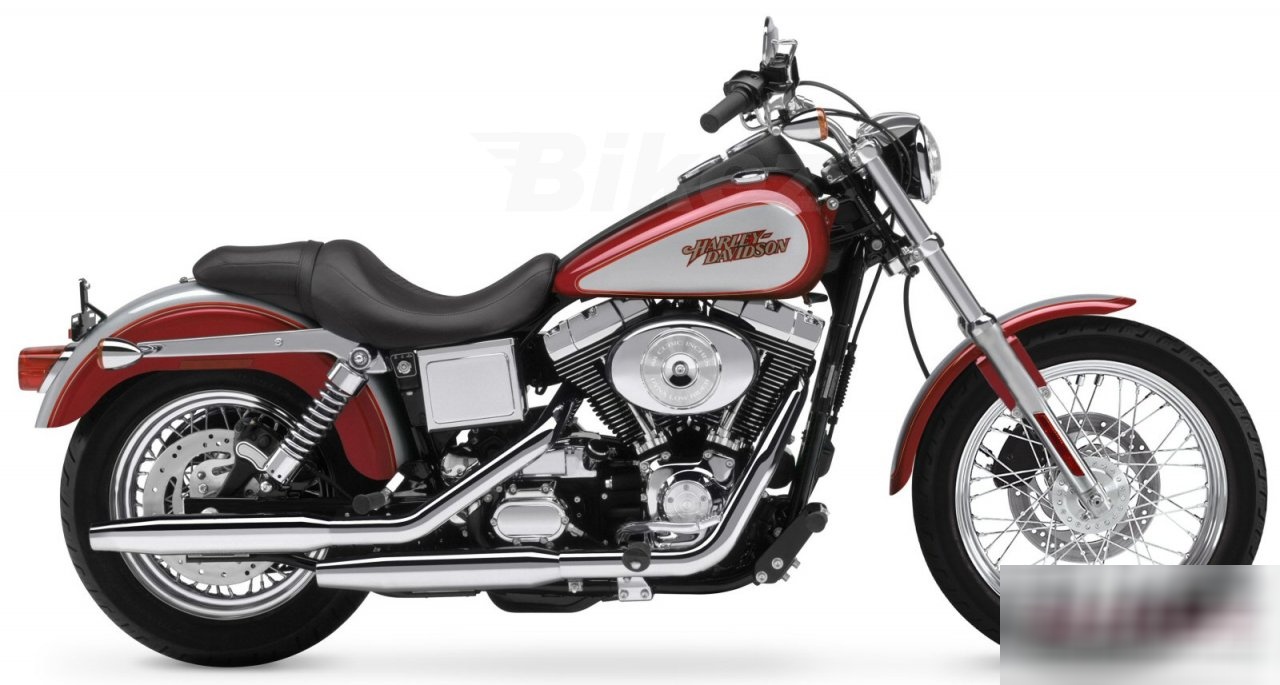

| Model | Harley-Davidson FXDLI Dyna Low Rider |
| Category | Custom / cruiser |
| Engine and transmission |
| Engine type | V2, four-stroke |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Engine details | Add |
| Displacement | 1,449 cm³ |
| Power | Add |
| Max RPM | Add |
| Fuel consumption | 0.65 l/100km |
| Cooling system | Air |
| Transmission type,final drive | Belt |
| Torque | 102 Nm |
| Bore | 95.3 mm |
| Stroke | 101.6 mm |
| Gearbox | 5-speed |
| Greenhouse gases | 15.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Emission details | Add |
| Driveline | Add |
| Ignition | Add |
| Clutch | Add |
| Lubrication system | Add |
| Compression | 8.8:1 |
| Exhaust system | Add |
| Chassis |
| Front suspension | Add |
| Rear suspension | Add |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Diameter | 292 mm |
| Frame type | Add |
| Front tyre | 100/90-19 |
| Rear tyre | 150/80-B16 |
| Seat | Add |
| Wheels | Add |
| Front wheel travel | Add |
| Rear wheel travel | Add |
| Trail | 130 mm |
| Rake (fork angle) | 32 degree |
| Other |
| Battery capacity | Add |
| Starter | Add |
| Color options | - brilliant silver
- glacier white pearl
- impact blue
- lava red sunglo
- luxury blue
- sierra red
- two-tone luxury blue and impact blue
- vivid black
|
| Carrying capacity | Add |
| Light | Add |
| Instruments | Add |
| Electrical Voltage | Add |
| Dimensions |
| Wheelbase | 1,595 mm |
| Kerb weight | Add |
| Dry weight | 290 kg |
| Power/weight ratio | Add |
| Overall height | Add |
| Overall length | 2,340 mm |
| Overall width | 673 mm |
| Seat height | 640 mm |
| Alternate seat height | Add |
| Ground clearance | 116 mm |
| Front percentage of weight | Add |
| Rear percentage of weight | Add |
| Performance |
| Top speed | 160 km/h |
| Acceleration 0-100 km/h | Add |
| Length | Add |
| Reserve fuel capacity | Add |
| Fuel capacity | 17.4 l |
| Oil capacity | Add |
| Width | Add |
| Height | Add |
