| Attribute | Value |
| General |
| Production from | 2011 year |
| Make | Harley-Davidson |

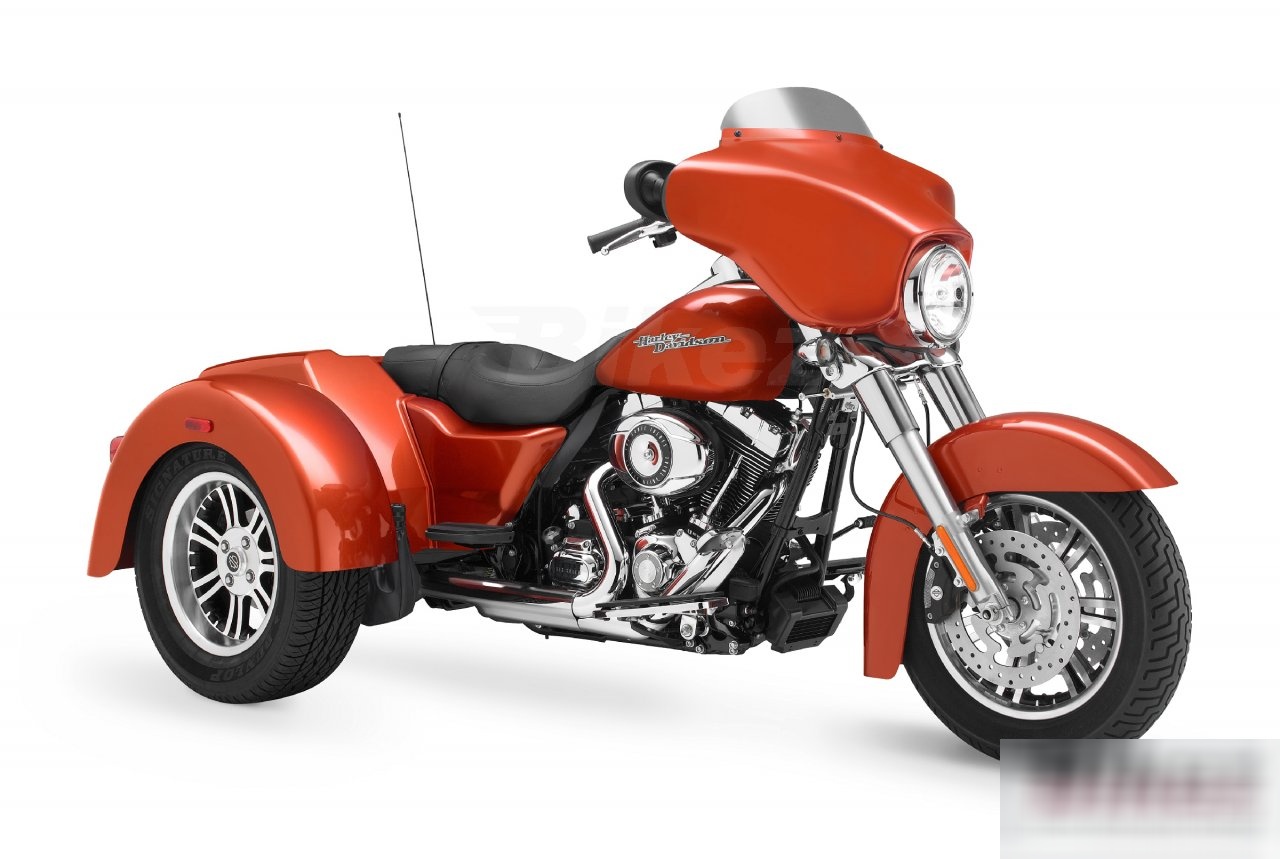

| Model | Harley-Davidson FLHXXX Street Glide Trike |
| Category | Custom / cruiser |
| Engine and transmission |
| Engine type | V2, four-stroke |
| Valves per cylinder | Add |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection |
| Engine details | Twin Cam 103. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters: two valves per cylinder. |
| Displacement | 1,688 cm³ |
| Power | Add |
| Max RPM | Add |
| Fuel consumption | Add |
| Cooling system | Air |
| Transmission type,final drive | Belt |
| Torque | 137 Nm |
| Bore | 95.3 mm |
| Stroke | 111 mm |
| Gearbox | 6-speed |
| Greenhouse gases | Add |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Emission details | Add |
| Driveline | Primary Drive: Chain, 34/46 ratio. Final Drive: Belt, 30/70 ratio. |
| Ignition | Add |
| Clutch | Multi-plate, wet |
| Lubrication system | Pressurized, dry-sump with oil cooler |
| Compression | 9.6:1 |
| Exhaust system | Two-into-One-into-Two chrome exhaust |
| Chassis |
| Front suspension | 41.3 mm telescopic, triple-circuit damping |
| Rear suspension | Air-adjustable shocks |
| Front brakes | Single disc. ABS |
| Rear brakes | Double disc. ABS |
| Diameter | 228 mm |
| Frame type | Mild steel, square-section backbone with twin downtubes |
| Front tyre | MT90-B16 |
| Rear tyre | 205/65-R16 |
| Seat | Add |
| Wheels | Black, 7-spoke Cast Aluminum |
| Front wheel travel | 117 mm |
| Rear wheel travel | 75 mm |
| Trail | 100 mm |
| Rake (fork angle) | 26 degree |
| Other |
| Battery capacity | Add |
| Starter | Electric |
| Color options | - cool blue pearl
- cool blue pearl / vivid black
- merlot sunglo/vivid black
- vivid black
|
| Carrying capacity | Add |
| Light | 55-watt low beam, 60-watt high beam |
| Instruments | Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter |
| Electrical Voltage | Add |
| Dimensions |
| Wheelbase | 1,691 mm |
| Kerb weight | 503 kg |
| Dry weight | 485 kg |
| Power/weight ratio | Add |
| Overall height | Add |
| Overall length | 2,687 mm |
| Overall width | 1,389 mm |
| Seat height | 721 mm |
| Alternate seat height | Add |
| Ground clearance | 119 mm |
| Front percentage of weight | Add |
| Rear percentage of weight | Add |
| Performance |
| Top speed | Add |
| Acceleration 0-100 km/h | Add |
| Length | Add |
| Reserve fuel capacity | Add |
| Fuel capacity | 22.71 l |
| Oil capacity | 3.7 l |
| Width | Add |
| Height | Add |
