| Attribute | Value |
| General |
| Production from | 2009 year |
| Make | Harley-Davidson |

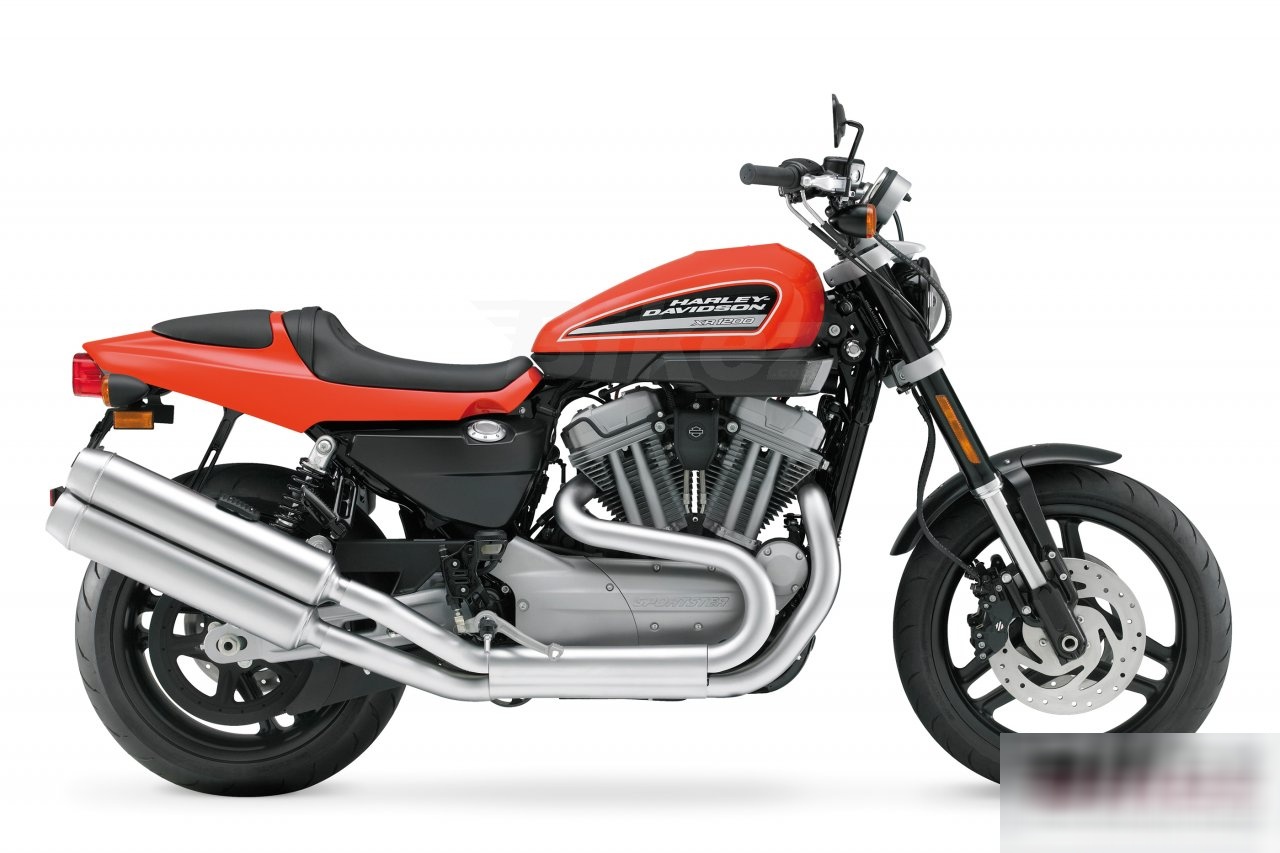

| Model | Harley-Davidson XL 1200R Sportster 1200 Roadster (XR 1200) |
| Category | Custom / cruiser |
| Engine and transmission |
| Engine type | V2, four-stroke |
| Valves per cylinder | Add |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Engine details | Add |
| Displacement | 1,202 cm³ |
| Power | Add |
| Max RPM | Add |
| Fuel consumption | Add |
| Cooling system | Air |
| Transmission type,final drive | Belt |
| Torque | 98 Nm |
| Bore | 88.9 mm |
| Stroke | 96.8 mm |
| Gearbox | 5-speed |
| Greenhouse gases | Add |
| Fuel control | Add |
| Emission details | Add |
| Driveline | Add |
| Ignition | Add |
| Clutch | 9-plate, wet |
| Lubrication system | Add |
| Compression | 9.7:1 |
| Exhaust system | Upswept, high-volume 2-1-2 straight shot exhaust system finished in satin chrome |
| Chassis |
| Front suspension | Sport-tuned Showa® suspension featuring 43mm inverted front forks |
| Rear suspension | Twin pre-load adjustable shock absorbers |
| Front brakes | Double disc. 4-piston calipers |
| Rear brakes | Single disc. Single pistom |
| Diameter | 292 mm |
| Frame type | Mild steel tubular frame; circular sections; cast junctions |
| Front tyre | 120/70-ZR18 |
| Rear tyre | 180/55-ZR17 |
| Seat | Add |
| Wheels | Add |
| Front wheel travel | Add |
| Rear wheel travel | Add |
| Trail | Add |
| Rake (fork angle) | Add |
| Other |
| Battery capacity | Add |
| Starter | Electric |
| Color options | Add |
| Carrying capacity | Add |
| Light | Add |
| Instruments | Add |
| Electrical Voltage | Add |
| Dimensions |
| Wheelbase | Add |
| Kerb weight | Add |
| Dry weight | 251 kg |
| Power/weight ratio | Add |
| Overall height | Add |
| Overall length | Add |
| Overall width | Add |
| Seat height | 742 mm |
| Alternate seat height | Add |
| Ground clearance | Add |
| Front percentage of weight | Add |
| Rear percentage of weight | Add |
| Performance |
| Top speed | Add |
| Acceleration 0-100 km/h | Add |
| Length | Add |
| Reserve fuel capacity | Add |
| Fuel capacity | 12.5 l |
| Oil capacity | Add |
| Width | Add |
| Height | Add |
