| Attribute | Value |
| General |
| Production from | 2005 year |
| Make | Kawasaki |

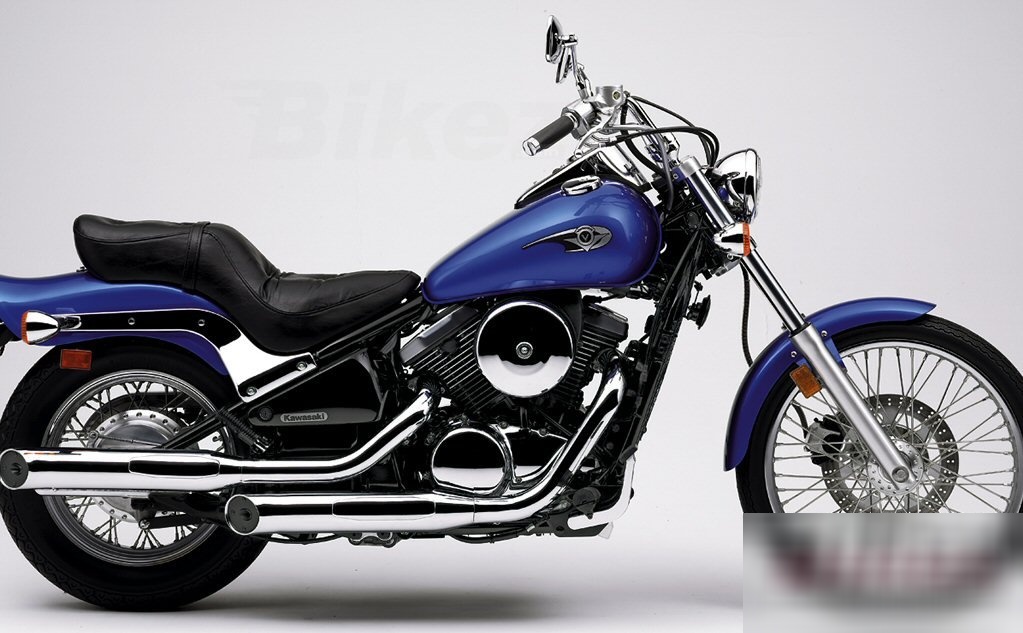

| Model | Kawasaki Vulcan 800 |
| Category | Custom / cruiser |
| Engine and transmission |
| Engine type | V2, four-stroke |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin CVK36 |
| Engine details | Add |
| Displacement | 805 cm³ |
| Power | Add |
| Max RPM | Add |
| Fuel consumption | Add |
| Cooling system | Liquid |
| Transmission type,final drive | Shaft drive (cardan) |
| Torque | Add |
| Bore | 88 mm |
| Stroke | 66.2 mm |
| Gearbox | 5-speed |
| Greenhouse gases | Add |
| Fuel control | Single Overhead Cams (SOHC) |
| Emission details | Add |
| Driveline | Add |
| Ignition | Digital |
| Clutch | Add |
| Lubrication system | Add |
| Compression | 9.5:1 |
| Exhaust system | Add |
| Chassis |
| Front suspension | 41mm hydraulic telescopic fork |
| Rear suspension | UNI-TRAK® single-shock system |
| Front brakes | Single disc. Hydraulic. |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | Add |
| Frame type | Double-cradle, high-tensile steel |
| Front tyre | 80/90-21 |
| Rear tyre | 140/90-x16 |
| Seat | Add |
| Wheels | Add |
| Front wheel travel | Add |
| Rear wheel travel | Add |
| Trail | Add |
| Rake (fork angle) | 34 degree |
| Other |
| Battery capacity | Add |
| Starter | Electric |
| Color options | |
| Carrying capacity | Add |
| Light | Add |
| Instruments | Add |
| Electrical Voltage | Add |
| Dimensions |
| Wheelbase | 1,626 mm |
| Kerb weight | Add |
| Dry weight | 225 kg |
| Power/weight ratio | Add |
| Overall height | 1,171 mm |
| Overall length | Add |
| Overall width | 826 mm |
| Seat height | 711 mm |
| Alternate seat height | Add |
| Ground clearance | 160 mm |
| Front percentage of weight | Add |
| Rear percentage of weight | Add |
| Performance |
| Top speed | Add |
| Acceleration 0-100 km/h | Add |
| Length | Add |
| Reserve fuel capacity | Add |
| Fuel capacity | 15.14 l |
| Oil capacity | Add |
| Width | Add |
| Height | Add |
