| Attribute | Value |
| General |
| Production from | 2005 year |
| Make | KTM |

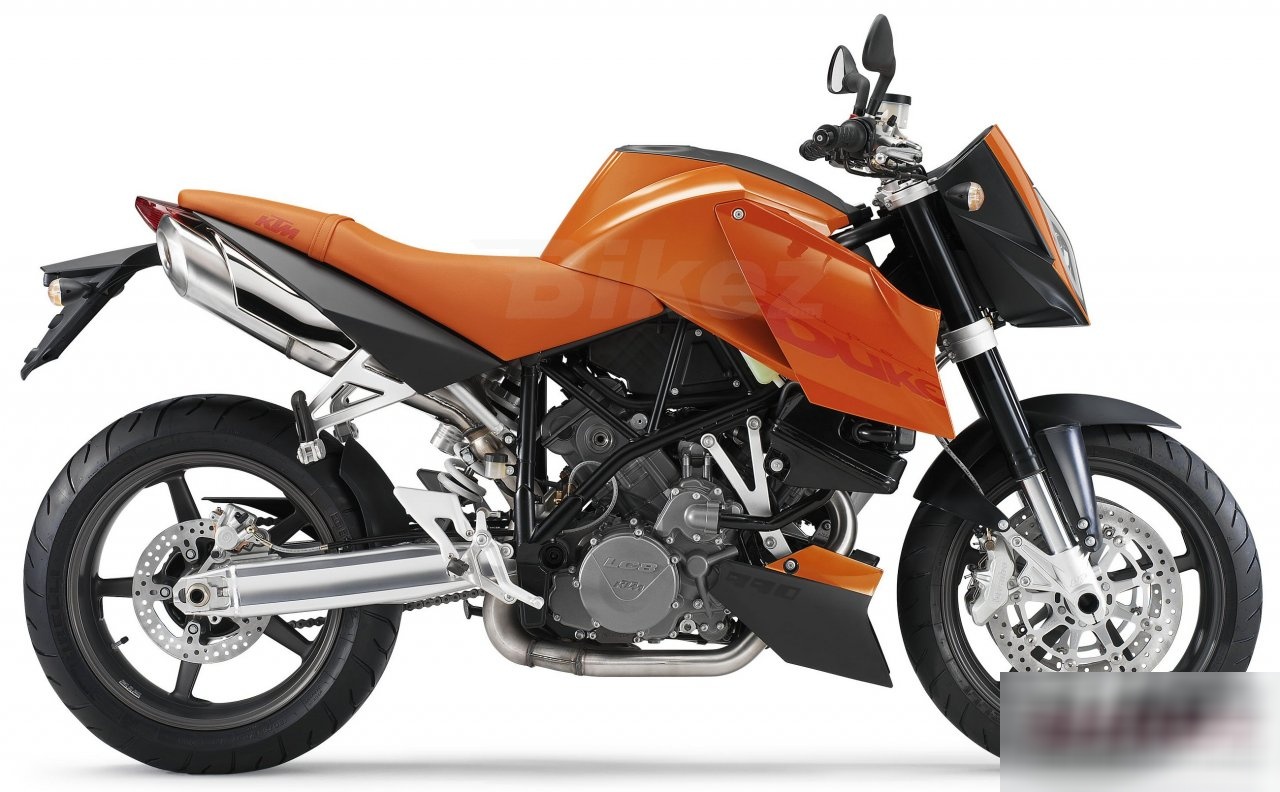

| Model | KTM 990 Super Duke Orange |
| Category | Naked bike |
| Engine and transmission |
| Engine type | V2, four-stroke |
| Valves per cylinder | Add |
| Fuel system | Carburettor. Keihin MX FCR 41 |
| Engine details | Add |
| Displacement | 999 cm³ |
| Power | 86.1 kw |
| Max RPM | Add |
| Fuel consumption | Add |
| Cooling system | Liquid |
| Transmission type,final drive | Chain |
| Torque | 100 Nm |
| Bore | 101 mm |
| Stroke | 62.4 mm |
| Gearbox | 6-speed |
| Greenhouse gases | Add |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Emission details | Add |
| Driveline | Add |
| Ignition | Kokusan digital 4K-3A |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Lubrication system | Pressure lubrication |
| Compression | 11.5:1 |
| Exhaust system | Add |
| Chassis |
| Front suspension | WP-USD 48 mm (1.89´) |
| Rear suspension | WP - Monoshock |
| Front brakes | Double disc. 4-piston caliper |
| Rear brakes | Single disc. 1-piston caliper |
| Diameter | 240 mm |
| Frame type | Chromium-molybdenum, powder-coated |
| Front tyre | 120/70-ZR17 |
| Rear tyre | 180/55-ZR17 |
| Seat | Add |
| Wheels | Add |
| Front wheel travel | Add |
| Rear wheel travel | 335 mm |
| Trail | 103 mm |
| Rake (fork angle) | 23.5 degree |
| Other |
| Battery capacity | Add |
| Starter | Electric |
| Color options | |
| Carrying capacity | Add |
| Light | Add |
| Instruments | Add |
| Electrical Voltage | Add |
| Dimensions |
| Wheelbase | 1,438 mm |
| Kerb weight | Add |
| Dry weight | 184 kg |
| Power/weight ratio | 0.4679 |
| Overall height | 990 mm |
| Overall length | Add |
| Overall width | 990 mm |
| Seat height | 855 mm |
| Alternate seat height | Add |
| Ground clearance | 165 mm |
| Front percentage of weight | Add |
| Rear percentage of weight | Add |
| Performance |
| Top speed | Add |
| Acceleration 0-100 km/h | Add |
| Length | Add |
| Reserve fuel capacity | Add |
| Fuel capacity | 15 l |
| Oil capacity | Add |
| Width | Add |
| Height | Add |
