| Attribute | Value |
| General |
| Production from | 2012 year |
| Make | Pitster Pro |

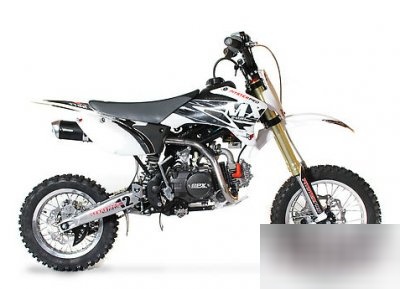

| Model | Pitster Pro MX 110R |
| Category | Minibike, cross |
| Engine and transmission |
| Engine type | Single cylinder, four-stroke |
| Valves per cylinder | Add |
| Fuel system | Carburettor |
| Engine details | Add |
| Displacement | 110 cm³ |
| Power | Add |
| Max RPM | Add |
| Fuel consumption | Add |
| Cooling system | Air |
| Transmission type,final drive | Chain |
| Torque | Add |
| Bore | 52.5 mm |
| Stroke | 49.5 mm |
| Gearbox | 4-speed |
| Greenhouse gases | Add |
| Fuel control | Single Overhead Cams (SOHC) |
| Emission details | Add |
| Driveline | Add |
| Ignition | Stator/ CDI with lighting coil |
| Clutch | 5 plate wet clutch |
| Lubrication system | Add |
| Compression | 9.2:1 |
| Exhaust system | FMF Factory 4.1 |
| Chassis |
| Front suspension | GPX Moto forks w/ Separate Comp and Reb Adjustment |
| Rear suspension | Pitster Progressive Link Swingarm w/ Comp. and Rebound Adjustment, Adjustable Spring Preload |
| Front brakes | Single disc. W-Style Rotor W/ Floating Caliper |
| Rear brakes | Single disc. W-Style Rotor W/ Floating Caliper |
| Diameter | 190 mm |
| Frame type | Central Double Cradle Chromo W/ Tri Point Mounting, removable footpeg Design, Progressive Link |
| Front tyre | 2.75-14 |
| Rear tyre | 1.85-12 |
| Seat | Add |
| Wheels | Standard |
| Front wheel travel | Add |
| Rear wheel travel | Add |
| Trail | Add |
| Rake (fork angle) | Add |
| Other |
| Battery capacity | Add |
| Starter | Electric & kick |
| Color options | |
| Carrying capacity | Add |
| Light | Add |
| Instruments | Add |
| Electrical Voltage | Add |
| Dimensions |
| Wheelbase | 1,161 mm |
| Kerb weight | Add |
| Dry weight | 64 kg |
| Power/weight ratio | Add |
| Overall height | Add |
| Overall length | Add |
| Overall width | Add |
| Seat height | Add |
| Alternate seat height | Add |
| Ground clearance | 254 mm |
| Front percentage of weight | Add |
| Rear percentage of weight | Add |
| Performance |
| Top speed | Add |
| Acceleration 0-100 km/h | Add |
| Length | Add |
| Reserve fuel capacity | Add |
| Fuel capacity | 3.8 l |
| Oil capacity | Add |
| Width | Add |
| Height | Add |
