| Attribute | Value |
| General |
| Production from | 2016 year |
| Make | TM Racing |

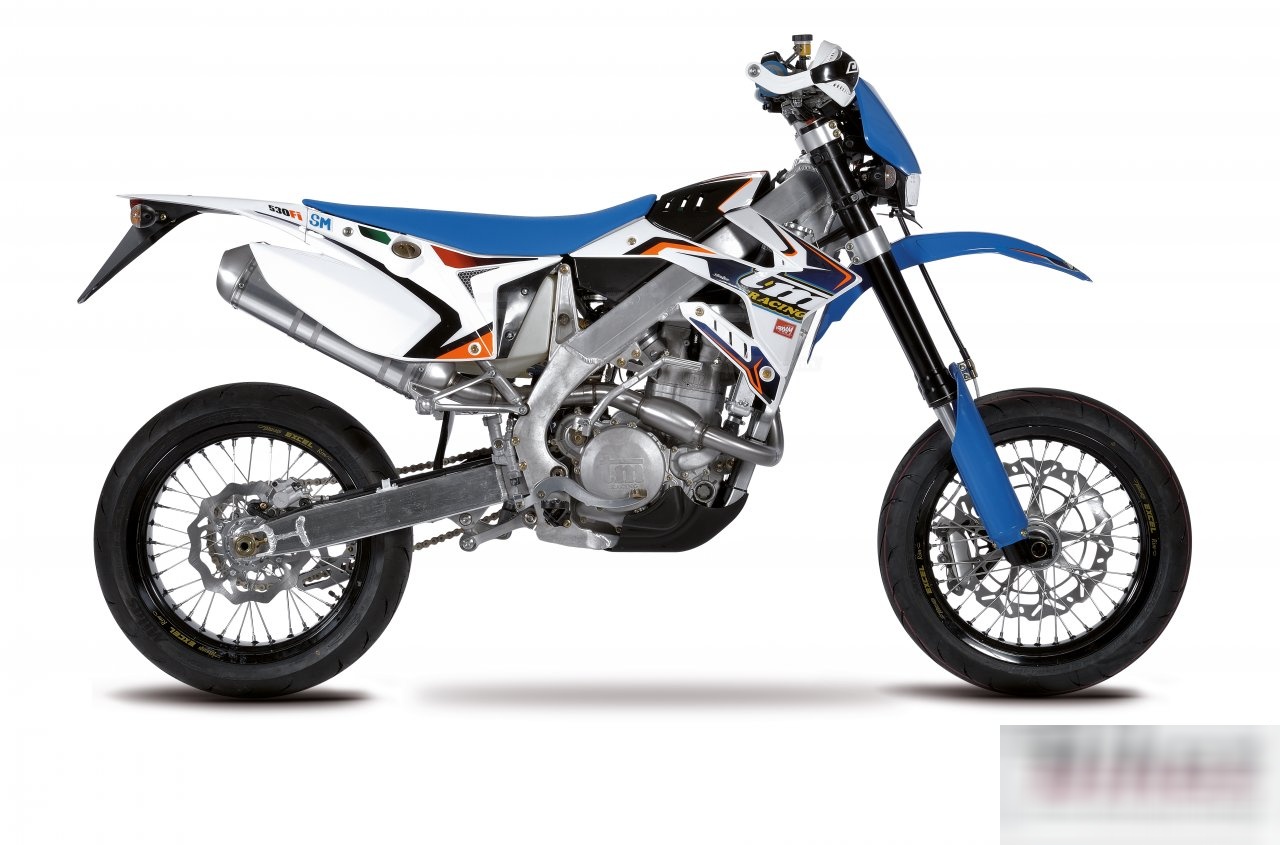

| Model | TM Racing SMR 530F |
| Category | Super motard |
| Engine and transmission |
| Engine type | Single cylinder, four-stroke |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin 39 mm |
| Engine details | Add |
| Displacement | 528 cm³ |
| Power | Add |
| Max RPM | Add |
| Fuel consumption | Add |
| Cooling system | Liquid |
| Transmission type,final drive | Chain |
| Torque | Add |
| Bore | 98 mm |
| Stroke | 70 mm |
| Gearbox | 5-speed |
| Greenhouse gases | Add |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Emission details | Add |
| Driveline | Straight, tooth gear |
| Ignition | Kokusan DCI Electronic with variable advance |
| Clutch | Multiple-disk in oil-bath with hydraulic control |
| Lubrication system | Dry sump with 2 pump |
| Compression | Add |
| Exhaust system | Add |
| Chassis |
| Front suspension | Marzocchi USD 45 mm (optional Marzocchi USD 50 mm) |
| Rear suspension | Sachs (optional TM Racing) |
| Front brakes | Single disc. Wave disk with Brembo pump and radial caliper |
| Rear brakes | Single disc. Wave disk with Nissin pump and caliper |
| Diameter | 220 mm |
| Frame type | Alluminium perimetral |
| Front tyre | 120/70-ZR17 |
| Rear tyre | 150/60-ZR17 |
| Seat | Add |
| Wheels | Wire spoked |
| Front wheel travel | Add |
| Rear wheel travel | Add |
| Trail | Add |
| Rake (fork angle) | Add |
| Other |
| Battery capacity | Add |
| Starter | Electric & kick |
| Color options | |
| Carrying capacity | Add |
| Light | No lights |
| Instruments | Add |
| Electrical Voltage | Add |
| Dimensions |
| Wheelbase | Add |
| Kerb weight | Add |
| Dry weight | Add |
| Power/weight ratio | Add |
| Overall height | Add |
| Overall length | Add |
| Overall width | Add |
| Seat height | Add |
| Alternate seat height | Add |
| Ground clearance | Add |
| Front percentage of weight | Add |
| Rear percentage of weight | Add |
| Performance |
| Top speed | Add |
| Acceleration 0-100 km/h | Add |
| Length | Add |
| Reserve fuel capacity | Add |
| Fuel capacity | 8.2 l |
| Oil capacity | Add |
| Width | Add |
| Height | Add |
