McDonnell Douglas DC-9-10 Performance, Dimensions, General, Weights, Manufacturer, Model, Country. 30 properties. Comparisons. Similar objects.

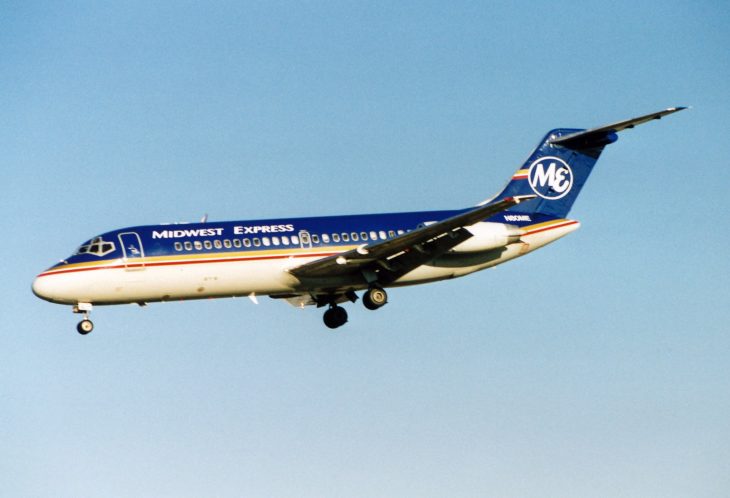

McDonnell Douglas DC-9-10 [+]Compare [E]dit [H]istory

Object «McDonnell Douglas DC-9-10» was created due to

Transport

Airplanes

Add new object to «McDonnell Douglas DC-9-10» or move existing objects here.

+ 2 more

Object «McDonnell Douglas DC-9-10» has attributes [Show empty attributes][Hide empty attributes]

Attribute	Value
General
Manufacturer	Douglas Aircraft Co.
Model	McDonnell Douglas DC-9-10
Country	United States
Manufactured from	1965 year
Manufactured to	1969 year
Type	Light Passenger Jets
Icao	DC91
Performance
Engine	2x Pratt & Whitney JT8D-7
Power, hp	Add
Power, lbf	14,000 lbf
Avionics	Add
Max cruise speed	896 km/h
Approach speed	244 km/h
Travel range	2,685 km
Fuel economy	Add
Service ceiling	10,668 m
Rate of climb	14.22 m/sec
Take off distance	1,615 m
Landing distance	1,320 m
Weights
Max take off weight	41,100 kg
Max landing weight	37,100 kg
Max payload	18,000 kg
Fuel tank capacity	13,979 l
Baggage volume	17 m³
Dimensions
Seats	9
Seats - business class	Add
Seats - first class	Add
Cabin height	2.1 m
Cabin width	3.1 m
Cabin length	18.29 m
Exterior length	31.82 m
Tail height	8.38 m
Fuselage diameter	3.34 m
Wing span	27.25 m
Wing tips	No Winglets
