Attribute | Value |
---|---|
General | |
Manufacturer | Eclipse Aviation |

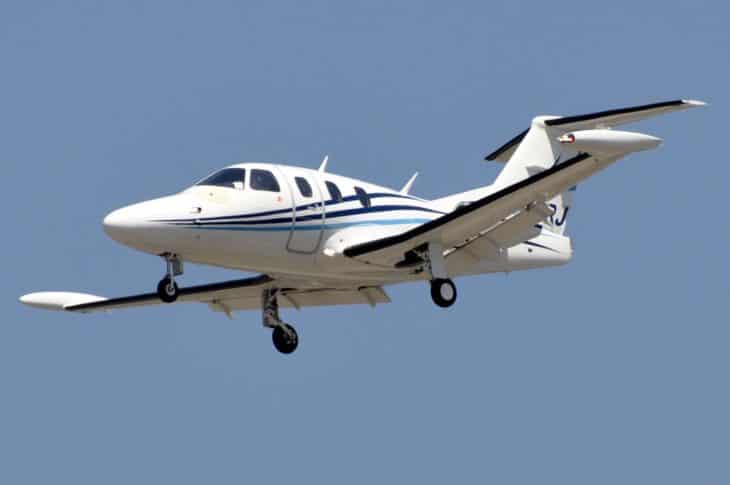

Model | Eclipse 500 |
Country | United States |
Manufactured from | 2006 year |
Manufactured to | 2008 year |
Type | VLJ (Very Light Jets) |
Icao | EA50 |
Performance | |
Engine | 2x Pratt & Whitney PW610F turbofan |
Power, hp | Add |
Power, lbf | 900 lbf |
Avionics | Avio Next Generation |
Max cruise speed | 685 km/h |
Approach speed | 128 km/h |
Travel range | 2,084 km |
Fuel economy | 5.157 km/l |
Service ceiling | 12,497 m |
Rate of climb | 16.84 m/sec |
Take off distance | 715 m |
Landing distance | 686 m |
Weights | |
Max take off weight | 2,612 kg |
Max landing weight | 2,456 kg |
Max payload | 1,027 kg |
Fuel tank capacity | 700 l |
Baggage volume | 0.45 m³ |
Dimensions | |
Seats | 6 |
Seats - business class | 4 |
Seats - first class | Add |
Cabin height | 1.27 m |
Cabin width | 1.42 m |
Cabin length | 3.75 m |
Exterior length | 10.1 m |
Tail height | 3.35 m |
Fuselage diameter | 1.47 m |
Wing span | 11.4 m |
Wing tips | No Winglets |
