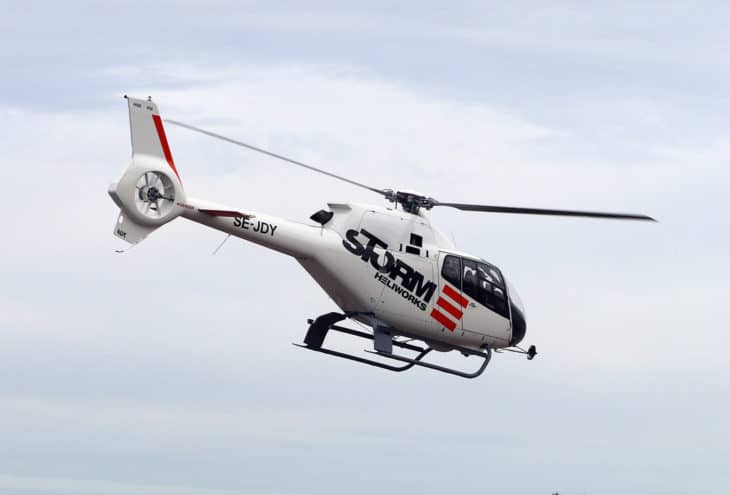

Eurocopter EC120 [+]Compare [E]dit [H]istory
Object «Eurocopter EC120» was created due to
Add new object to «Eurocopter EC120» or move existing objects here.
Object «Eurocopter EC120» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Eurocopter |
| Model | Eurocopter EC120 |
| Country | France |
| Manufactured from | 1995 year |
| Manufactured to | 2017 year |
| Type | Light Helicopters |
| Icao | EC20 |
| Performance | |
| Engine | 1x Turbomeca Arrius 2F turboshaft |
| Power, hp | 504 hp |
| Power, lbf | Add |
| Avionics | Sagem avionics |
| Max cruise speed | 278 km/h |
| Approach speed | Add |
| Travel range | 735 km |
| Fuel economy | 1.967 km/l |
| Service ceiling | 6,096 m |
| Rate of climb | 7.11 m/sec |
| Take off distance | Add |
| Landing distance | Add |
| Weights | |
| Max take off weight | 1,800 kg |
| Max landing weight | Add |
| Max payload | 724 kg |
| Fuel tank capacity | 416 l |
| Baggage volume | 0.8 m³ |
| Dimensions | |
| Seats | 5 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | 1.25 m |
| Cabin width | 1.35 m |
| Cabin length | 2.3 m |
| Exterior length | 11.52 m |
| Tail height | 3.4 m |
| Fuselage diameter | 1.5 m |
| Wing span | 10 m |
| Wing tips | No Winglets |
