Attribute | Value |
---|---|
General | |
Manufacturer | Fairchild |

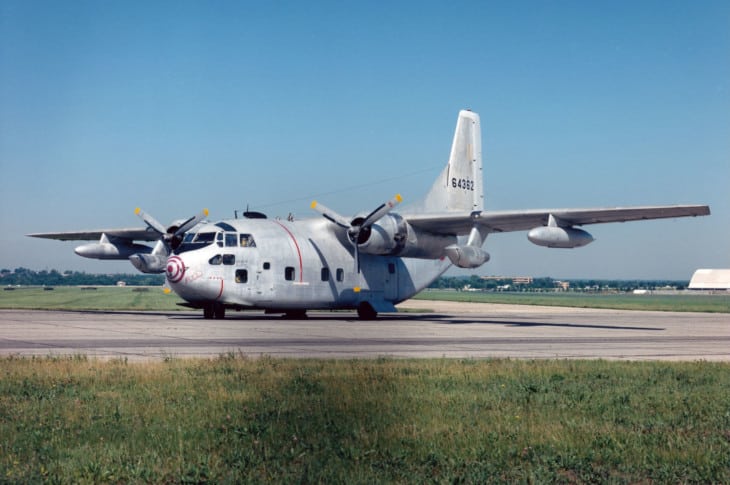

Model | Fairchild C-123 Provider |
Country | United States |
Manufactured from | 1949 year |
Manufactured to | 1970 year |
Type | Military Transport Planes |
Icao | C123 |
Performance | |
Engine | 4x 2x Pratt & Whitney R-2800-99W Double Wasp, 2x General Electric J85-GE-17 turbojet - 2850 lbf each - |
Power, hp | 2,500 hp |
Power, lbf | Add |
Avionics | Add |
Max cruise speed | 367 km/h |
Approach speed | 154 km/h |
Travel range | 2,158 km |
Fuel economy | Add |
Service ceiling | 8,839 m |
Rate of climb | 6.2 m/sec |
Take off distance | 550 m |
Landing distance | 550 m |
Weights | |
Max take off weight | 27,216 kg |
Max landing weight | Add |
Max payload | 11,000 kg |
Fuel tank capacity | 8,941 l |
Baggage volume | Add |
Dimensions | |
Seats | 6 |
Seats - business class | Add |
Seats - first class | Add |
Cabin height | Add |
Cabin width | Add |
Cabin length | Add |
Exterior length | 23.24 m |
Tail height | 10.39 m |
Fuselage diameter | 3.85 m |
Wing span | 33.53 m |
Wing tips | No Winglets |
