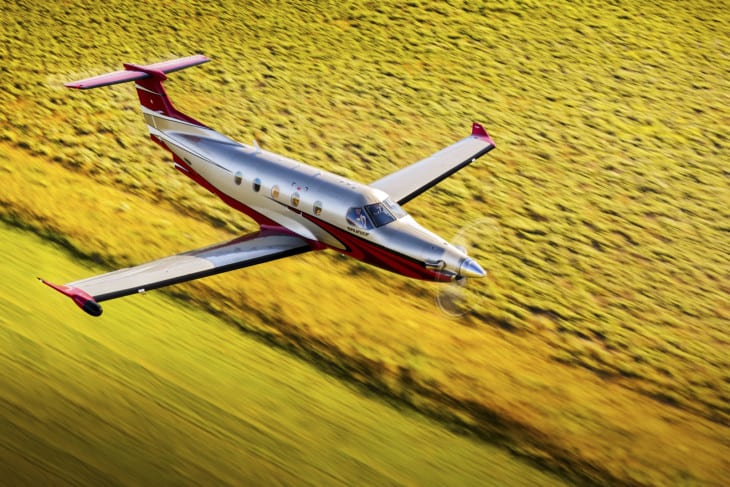

Pilatus PC-12NGX [+]Compare [E]dit [H]istory
Object «Pilatus PC-12NGX» was created due to
Add new object to «Pilatus PC-12NGX» or move existing objects here.
Object «Pilatus PC-12NGX» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Pilatus Aircraft |
| Model | Pilatus PC-12NGX |
| Country | Switzerland |
| Manufactured from | 1991 year |
| Manufactured to | Add |
| Type | Private Single Engine |
| Icao | PC12 |
| Performance | |
| Engine | 1x Pratt & Whitney PT6E-67XP |
| Power, hp | 1,200 hp |
| Power, lbf | Add |
| Avionics | Pilatus Advanced Cockpit Environment (ACE) |
| Max cruise speed | 537 km/h |
| Approach speed | 124 km/h |
| Travel range | 3,339 km |
| Fuel economy | Add |
| Service ceiling | 9,144 m |
| Rate of climb | 9.75 m/sec |
| Take off distance | 758 m |
| Landing distance | 661 m |
| Weights | |
| Max take off weight | 4,740 kg |
| Max landing weight | 4,500 kg |
| Max payload | 1,014 kg |
| Fuel tank capacity | 1,522 l |
| Baggage volume | 1.13 m³ |
| Dimensions | |
| Seats | 9 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | 1.47 m |
| Cabin width | 1.52 m |
| Cabin length | 5.16 m |
| Exterior length | 14.4 m |
| Tail height | 4.26 m |
| Fuselage diameter | 1.7 m |
| Wing span | 16.28 m |
| Wing tips | Small Winglets |
