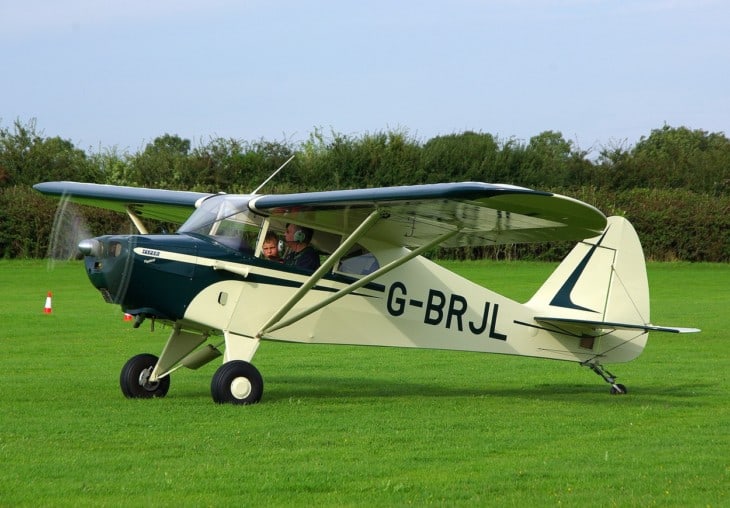

Piper PA-15 Vagabond [+]Compare [E]dit [H]istory
Object «Piper PA-15 Vagabond» was created due to
Add new object to «Piper PA-15 Vagabond» or move existing objects here.
Object «Piper PA-15 Vagabond» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Piper Aircraft |
| Model | Piper PA-15 Vagabond |
| Country | United States |
| Manufactured from | 1946 year |
| Manufactured to | 1948 year |
| Type | Private Single Engine |
| Icao | PA15 |
| Performance | |
| Engine | 1x Lycoming O-145 |
| Power, hp | 65 hp |
| Power, lbf | Add |
| Avionics | Add |
| Max cruise speed | 161 km/h |
| Approach speed | 72 km/h |
| Travel range | 407 km |
| Fuel economy | Add |
| Service ceiling | 3,048 m |
| Rate of climb | 2.59 m/sec |
| Take off distance | 274 m |
| Landing distance | 91 m |
| Weights | |
| Max take off weight | 499 kg |
| Max landing weight | 499 kg |
| Max payload | 110 kg |
| Fuel tank capacity | 136 l |
| Baggage volume | Add |
| Dimensions | |
| Seats | 2 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | Add |
| Cabin width | Add |
| Cabin length | Add |
| Exterior length | 5.69 m |
| Tail height | 2.2 m |
| Fuselage diameter | 1 m |
| Wing span | 8.92 m |
| Wing tips | No Winglets |
