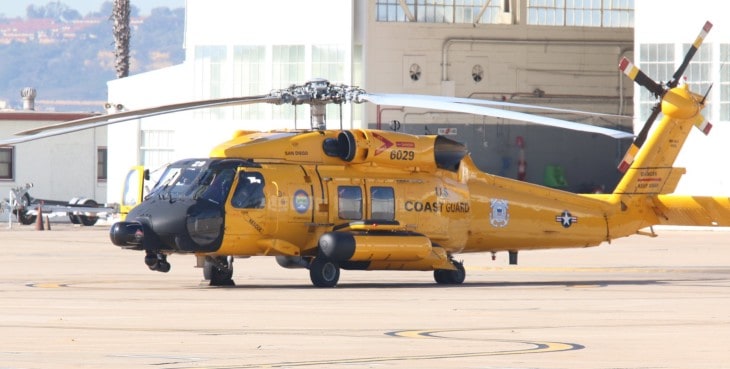

Sikorsky MH-60 Jayhawk [+]Compare [E]dit [H]istory
Object «Sikorsky MH-60 Jayhawk» was created due to
Add new object to «Sikorsky MH-60 Jayhawk» or move existing objects here.
Object «Sikorsky MH-60 Jayhawk» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Sikorsky Helicopter |
| Model | Sikorsky MH-60 Jayhawk |
| Country | United States |
| Manufactured from | 1990 year |
| Manufactured to | 1996 year |
| Type | Military Helicopters |
| Icao | H60 |
| Performance | |
| Engine | 2x General Electric T700-GE-401C |
| Power, hp | 1,890 hp |
| Power, lbf | Add |
| Avionics | Common Avionics Architecture System |
| Max cruise speed | 333 km/h |
| Approach speed | Add |
| Travel range | 1,296 km |
| Fuel economy | Add |
| Service ceiling | 1,524 m |
| Rate of climb | 4.06 m/sec |
| Take off distance | Add |
| Landing distance | Add |
| Weights | |
| Max take off weight | 9,926 kg |
| Max landing weight | 9,510 kg |
| Max payload | 3,346 kg |
| Fuel tank capacity | 2,934 l |
| Baggage volume | Add |
| Dimensions | |
| Seats | 8 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | 2.1 m |
| Cabin width | 2.9 m |
| Cabin length | 6.8 m |
| Exterior length | 19.8 m |
| Tail height | 5.2 m |
| Fuselage diameter | 3.16 m |
| Wing span | 16.36 m |
| Wing tips | No Winglets |
