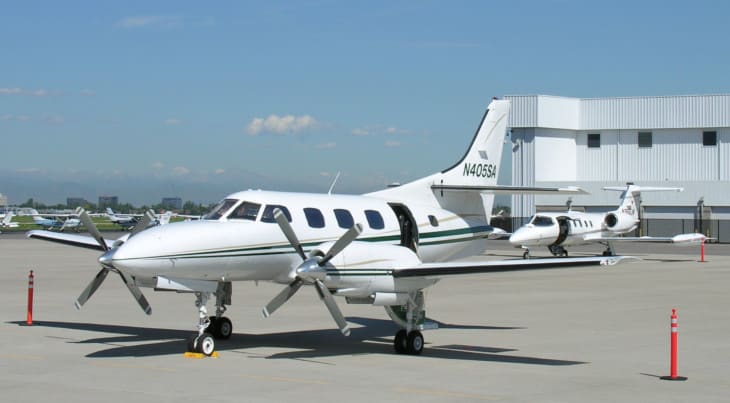

Swearingen Merlin [+]Compare [E]dit [H]istory
Object «Swearingen Merlin» was created due to
Add new object to «Swearingen Merlin» or move existing objects here.
Object «Swearingen Merlin» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Swearingen |
| Model | Swearingen Merlin |
| Country | United States |
| Manufactured from | 1965 year |
| Manufactured to | 1998 year |
| Type | Twin Turboprops |
| Icao | SW3 |
| Performance | |
| Engine | 2x Garrett AiResearch TPE-331-10U-503G |
| Power, hp | 900 hp |
| Power, lbf | Add |
| Avionics | Collins Avionics |
| Max cruise speed | 556 km/h |
| Approach speed | 170 km/h |
| Travel range | 3,589 km |
| Fuel economy | Add |
| Service ceiling | 8,230 m |
| Rate of climb | 13.72 m/sec |
| Take off distance | 1,300 m |
| Landing distance | 900 m |
| Weights | |
| Max take off weight | 6,000 kg |
| Max landing weight | 5,670 kg |
| Max payload | 1,945 kg |
| Fuel tank capacity | 2,461 l |
| Baggage volume | 3 m³ |
| Dimensions | |
| Seats | 9 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | 1.45 m |
| Cabin width | 1.57 m |
| Cabin length | 7.75 m |
| Exterior length | 12.85 m |
| Tail height | 5.13 m |
| Fuselage diameter | 1.6 m |
| Wing span | 14.1 m |
| Wing tips | No Winglets |
