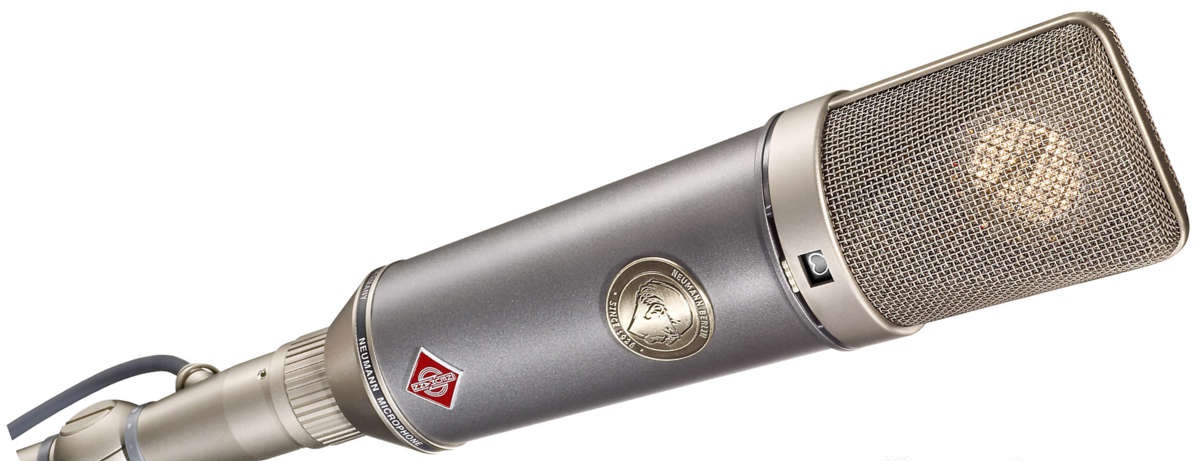

Neumann TLM 67 [+]Compare [E]dit [H]istory

Object «Neumann TLM 67» was created due to

Electronics

Microphones

Add new object to «Neumann TLM 67» or move existing objects here.

Object «Neumann TLM 67» has attributes [Show empty attributes][Hide empty attributes]

Attribute	Value
Capsule Diameter	34 mm
Phantom Voltage	48.00 V
Requires Phantom Power	+
Interfaces	3-pin XLR male
Max Diameter	56 mm
SPL/Self-Noise Ratio	10.45
Self-Noise	11 dB
Sound Pressure Level (SPL)	115 dB
Impedance	50 Ohm
Diaphragm Gauge	6 micron
Length	200 mm
Filters	HPF: -6dB @ 150 Hz
Pads	-10dB
Range	20 - 20,000 Hz
Sensitivity	18 mV/Pa
Pickup Pattern	Bidirectional Cardioid Omnidirectional
Brand	Neumann
Name	Neumann TLM 67
Weight	490 g
Diaphragm Diameter	Add
Includes Tube Power Supply	Add
Has Battery Compartment	Add
Battery compartment type	Add
