Attribute | Value |
General |
Production from | 2012 year |
Make | Ducati |

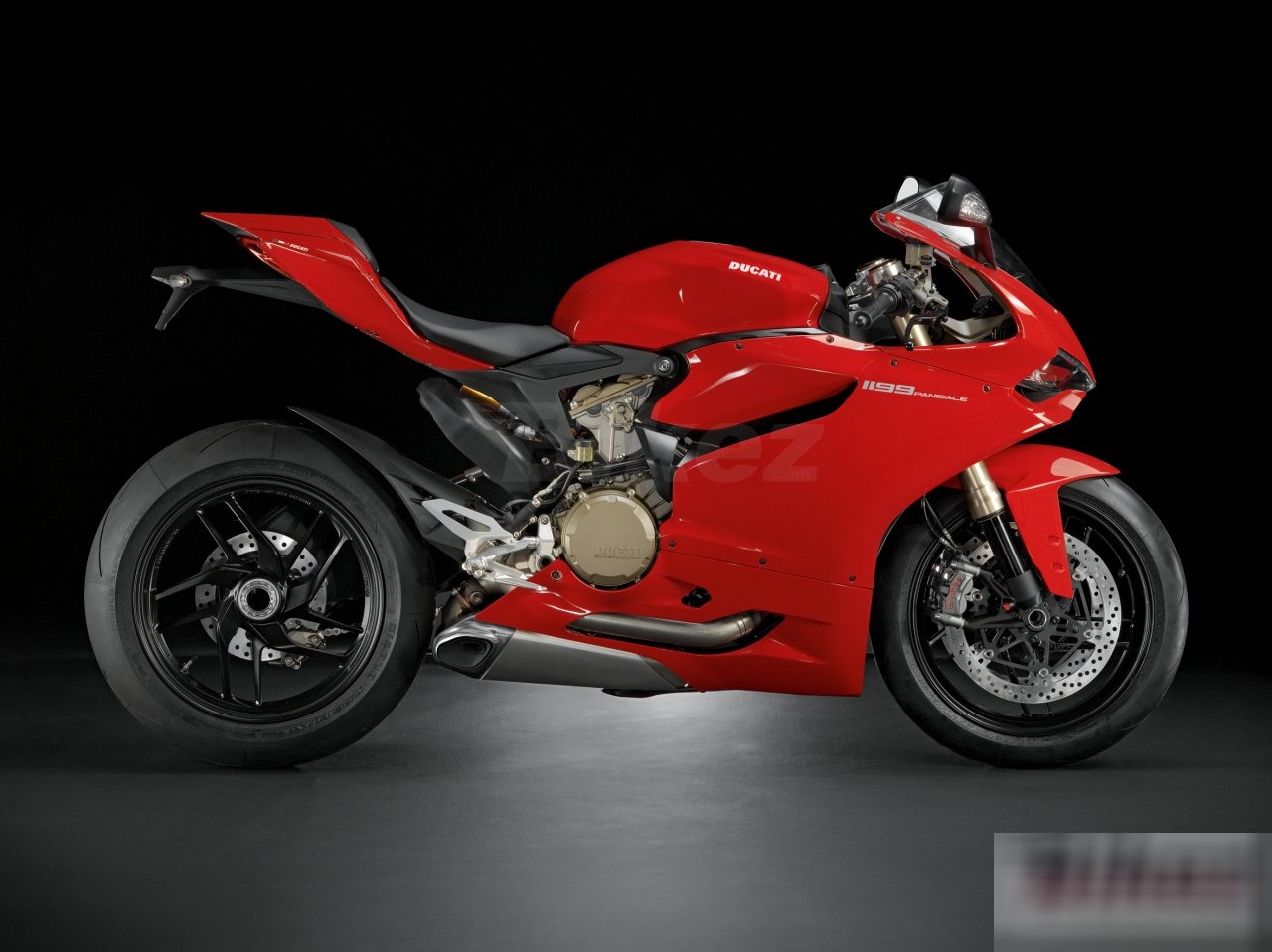

Model | Ducati 1199 Panigale |
Category | Sport |
Engine and transmission |
Engine type | V2, four-stroke |
Valves per cylinder | 4 |
Fuel system | Injection. Marelli electronic fuel injection, elliptical throttle bodies |
Engine details | Add |
Displacement | 849.4 cm³ |
Power | 142.3 kw |
Max RPM | Add |
Fuel consumption | Add |
Cooling system | Liquid |
Transmission type,final drive | Chain |
Torque | 133 Nm |
Bore | 112 mm |
Stroke | 112 mm |
Gearbox | 6-speed |
Greenhouse gases | Add |
Fuel control | Desmodromic valve control |
Emission details | Euro 3 |
Driveline | Add |
Ignition | Add |
Clutch | Slipper and self-servo wet multiplate clutch with hydraulic control |
Lubrication system | Add |
Compression | Add |
Exhaust system | 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves |
Chassis |
Front suspension | Marzocchi 50mm pressurized and fully adjustable usd fork with hard anodized aluminum lightweight slider |
Rear suspension | Fully adjustable Sachs unit. |
Front brakes | Double disc. Semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers ABS optional +2.5kg (+5.5lb) |
Rear brakes | Single disc. 2-piston calliper |
Diameter | 245 mm |
Frame type | Monocoque aluminum |
Front tyre | 120/70-17 |
Rear tyre | 180/55-17 |
Seat | Add |
Wheels | 10-spoke light alloy |
Front wheel travel | Add |
Rear wheel travel | Add |
Trail | Add |
Rake (fork angle) | 24.5 degree |
Other |
Battery capacity | Add |
Starter | Electric |
Color options | |
Carrying capacity | Add |
Light | Add |
Instruments | Add |
Electrical Voltage | Add |
Dimensions |
Wheelbase | 1,430 mm |
Kerb weight | 188 kg |
Dry weight | 164 kg |
Power/weight ratio | 0.8677 |
Overall height | Add |
Overall length | Add |
Overall width | Add |
Seat height | Add |
Alternate seat height | Add |
Ground clearance | Add |
Front percentage of weight | Add |
Rear percentage of weight | Add |
Performance |
Top speed | Add |
Acceleration 0-100 km/h | Add |
Length | Add |
Reserve fuel capacity | Add |
Fuel capacity | 17 l |
Oil capacity | Add |
Width | Add |
Height | Add |
