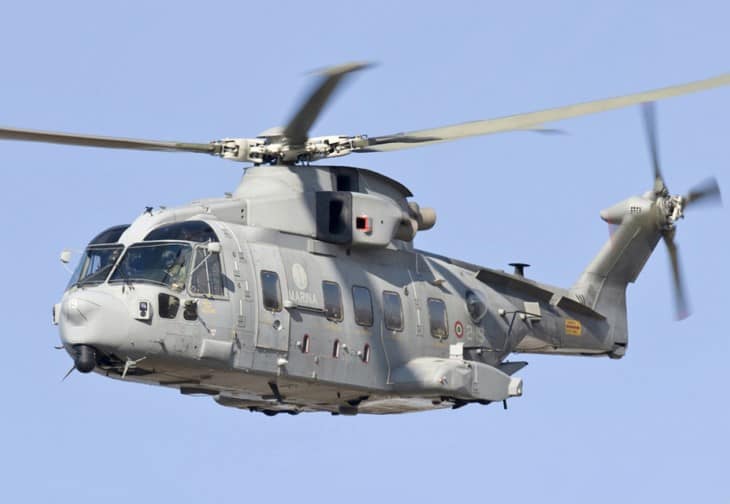

Agusta Westland AW101 Merlin [+]Compare [E]dit [H]istory
Object «Agusta Westland AW101 Merlin» was created due to
Add new object to «Agusta Westland AW101 Merlin» or move existing objects here.
Object «Agusta Westland AW101 Merlin» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | AgustaWestland |
| Model | Agusta Westland AW101 Merlin |
| Country | United Kingdom |
| Manufactured from | 2000 year |
| Manufactured to | Add |
| Type | Military Helicopters |
| Icao | EH10 |
| Performance | |
| Engine | 3x Rolls-Royce Turbomeca RTM322-01 |
| Power, hp | 2,100 hp |
| Power, lbf | Add |
| Avionics | NVG compatible glass cockpit, Smiths Industries OMI 20 SEP |
| Max cruise speed | 278 km/h |
| Approach speed | Add |
| Travel range | 1,000 km |
| Fuel economy | 0.22 km/l |
| Service ceiling | 4,572 m |
| Rate of climb | 10.16 m/sec |
| Take off distance | Add |
| Landing distance | Add |
| Weights | |
| Max take off weight | 15,600 kg |
| Max landing weight | Add |
| Max payload | 5,443 kg |
| Fuel tank capacity | 4,164 l |
| Baggage volume | 31 m³ |
| Dimensions | |
| Seats | 45 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | 1.9 m |
| Cabin width | 2.39 m |
| Cabin length | 6.5 m |
| Exterior length | 22.8 m |
| Tail height | 6.65 m |
| Fuselage diameter | 2.8 m |
| Wing span | 18.6 m |
| Wing tips | No Winglets |
