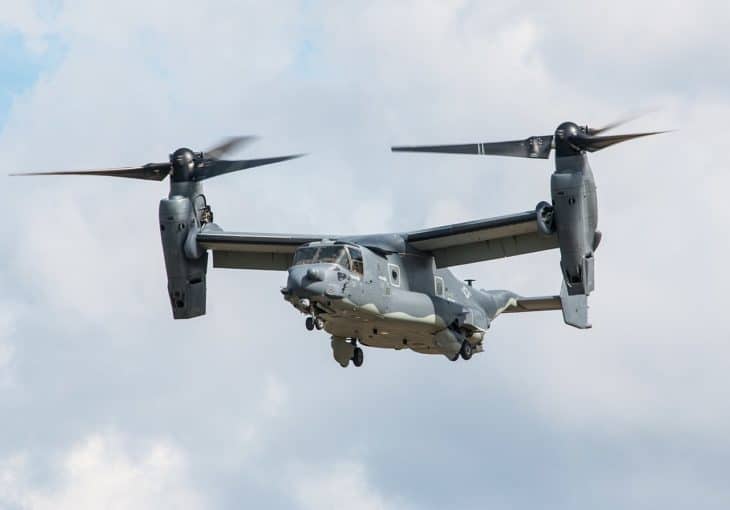

Bell Boeing V 22 Osprey [+]Compare [E]dit [H]istory
Object «Bell Boeing V 22 Osprey» was created due to
Add new object to «Bell Boeing V 22 Osprey» or move existing objects here.
Object «Bell Boeing V 22 Osprey» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Bell Helicopter |
| Model | Bell Boeing V 22 Osprey |
| Country | United States |
| Manufactured from | 1988 year |
| Manufactured to | Add |
| Type | Tilt Rotors |
| Icao | V22 |
| Performance | |
| Engine | 2x 2 × Rolls-Royce Allison T406 |
| Power, hp | 6,150 hp |
| Power, lbf | Add |
| Avionics | AN/ARC 182 VHF/UHF , etc. |
| Max cruise speed | 500 km/h |
| Approach speed | 204 km/h |
| Travel range | 1,628 km |
| Fuel economy | 0.24 km/l |
| Service ceiling | 7,925 m |
| Rate of climb | 20.83 m/sec |
| Take off distance | Add |
| Landing distance | Add |
| Weights | |
| Max take off weight | 27,443 kg |
| Max landing weight | Add |
| Max payload | 9,068 kg |
| Fuel tank capacity | 7,665 l |
| Baggage volume | Add |
| Dimensions | |
| Seats | 24 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | 1.83 m |
| Cabin width | 1.8 m |
| Cabin length | 7.37 m |
| Exterior length | 17.5 m |
| Tail height | 5.46 m |
| Fuselage diameter | 1.9 m |
| Wing span | 14 m |
| Wing tips | No Winglets |
