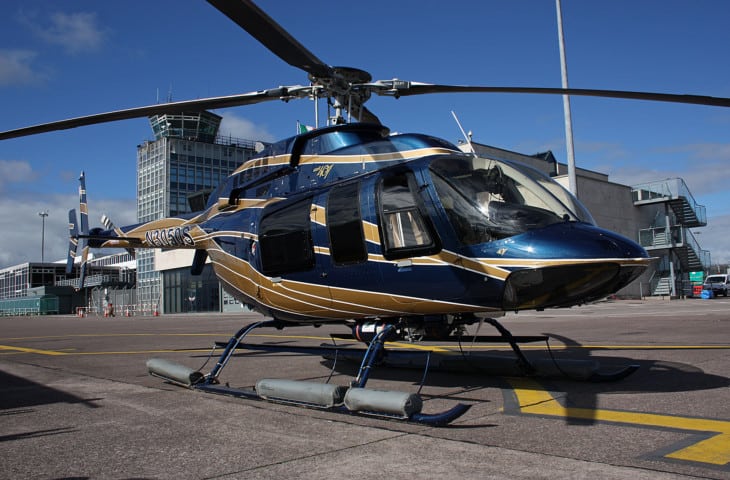

Bell 407 [+]Compare [E]dit [H]istory
Object «Bell 407» was created due to
Add new object to «Bell 407» or move existing objects here.
Object «Bell 407» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Bell Helicopter |
| Model | Bell 407 |
| Country | United States |
| Manufactured from | 1995 year |
| Manufactured to | Add |
| Type | Mid Size Helicopters |
| Icao | B407 |
| Performance | |
| Engine | 1x Rolls-Royce Model 250-C47E/4 |
| Power, hp | 862 hp |
| Power, lbf | Add |
| Avionics | AP-85 Two-Axis Autopilot, Garmin G1000H/G1000H NXi |
| Max cruise speed | 246 km/h |
| Approach speed | Add |
| Travel range | 624 km |
| Fuel economy | 1.659 km/l |
| Service ceiling | 6,096 m |
| Rate of climb | 9.4 m/sec |
| Take off distance | Add |
| Landing distance | Add |
| Weights | |
| Max take off weight | 2,722 kg |
| Max landing weight | Add |
| Max payload | 1,156 kg |
| Fuel tank capacity | 484 l |
| Baggage volume | 0.5 m³ |
| Dimensions | |
| Seats | 7 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | 1.2 m |
| Cabin width | 1.2 m |
| Cabin length | 2 m |
| Exterior length | 12.7 m |
| Tail height | 3.3 m |
| Fuselage diameter | 1.4 m |
| Wing span | 10.67 m |
| Wing tips | No Winglets |
