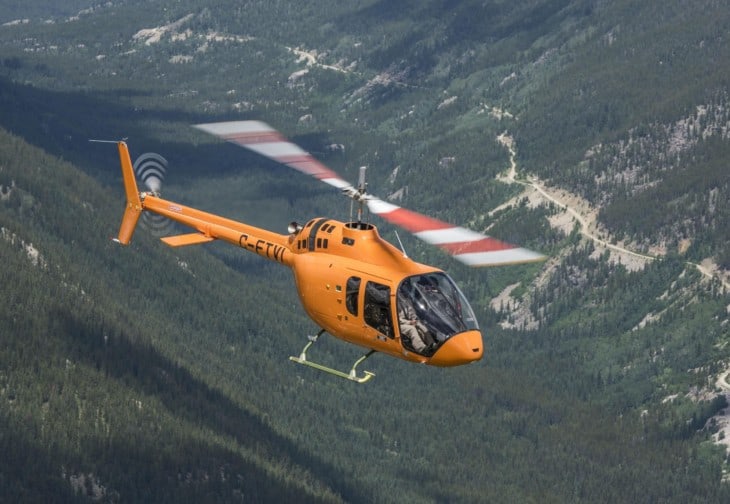

Bell 505 Jet Ranger X [+]Compare [E]dit [H]istory
Object «Bell 505 Jet Ranger X» was created due to
Add new object to «Bell 505 Jet Ranger X» or move existing objects here.
Object «Bell 505 Jet Ranger X» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Bell Helicopter |
| Model | Bell 505 Jet Ranger X |
| Country | United States |
| Manufactured from | 2013 year |
| Manufactured to | Add |
| Type | Light Helicopters |
| Icao | B505 |
| Performance | |
| Engine | 1x Turbomeca Arrius 2R |
| Power, hp | 505 hp |
| Power, lbf | Add |
| Avionics | Garmin G1000H |
| Max cruise speed | 232 km/h |
| Approach speed | Add |
| Travel range | 567 km |
| Fuel economy | Add |
| Service ceiling | 5,672 m |
| Rate of climb | Add |
| Take off distance | Add |
| Landing distance | Add |
| Weights | |
| Max take off weight | 2,030 kg |
| Max landing weight | 2,030 kg |
| Max payload | 680 kg |
| Fuel tank capacity | 363 l |
| Baggage volume | 0.5 m³ |
| Dimensions | |
| Seats | 5 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | 1.3 m |
| Cabin width | 1.46 m |
| Cabin length | 1.4 m |
| Exterior length | 12.9 m |
| Tail height | 3.1 m |
| Fuselage diameter | 1.52 m |
| Wing span | 11.28 m |
| Wing tips | No Winglets |
