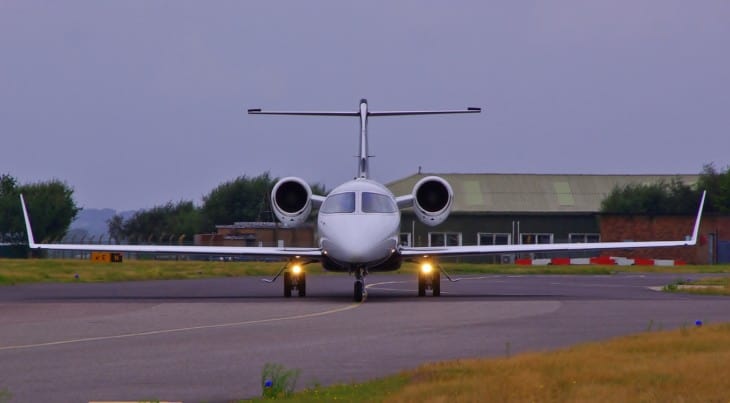

Bombardier Learjet 45 XR [+]Compare [E]dit [H]istory

Object «Bombardier Learjet 45 XR» was created due to

Add new object to «Bombardier Learjet 45 XR» or move existing objects here.


Object «Bombardier Learjet 45 XR» has attributes

Attribute Value
General
Manufacturer Bombardier Aerospace
Model Bombardier Learjet 45 XR
Country Canada
Manufactured from 2003 year
Manufactured to 2012 year
Type Light Business Jets
Icao LJ45
Performance
Engine 2x 2 X Honeywell TFE 731-20-BR
Power, hp Add
Power, lbf 3,500 lbf
Avionics Honeywell Primus 1000
Max cruise speed 861 km/h
Approach speed 213 km/h
Travel range 3,795 km
Fuel economy 1.106 km/l
Service ceiling 15,545 m
Rate of climb 13.36 m/sec
Take off distance 1,536 m
Landing distance 811 m
Weights
Max take off weight 9,750 kg
Max landing weight 8,707 kg
Max payload 856 kg
Fuel tank capacity 3,426 l
Baggage volume 1.87 m³
Dimensions
Seats 9
Seats - business class Add
Seats - first class Add
Cabin height 1.5 m
Cabin width 1.56 m
Cabin length 6.02 m
Exterior length 17.6 m
Tail height 4.3 m
Fuselage diameter 1.8 m
Wing span 14.56 m
Wing tips Blended Tips
