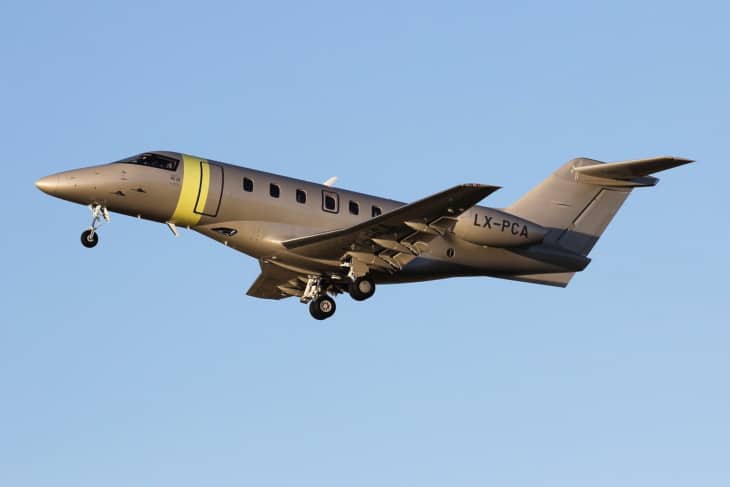

Pilatus PC-24 [+]Compare [E]dit [H]istory
Object «Pilatus PC-24» was created due to
Add new object to «Pilatus PC-24» or move existing objects here.
Object «Pilatus PC-24» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Pilatus Aircraft |
| Model | Pilatus PC-24 |
| Country | Switzerland |
| Manufactured from | 2015 year |
| Manufactured to | Add |
| Type | Midsize Business Jets |
| Icao | PC24 |
| Performance | |
| Engine | 2x Williams International FJ44-4A |
| Power, hp | Add |
| Power, lbf | 3,400 lbf |
| Avionics | Pilatus ACE™ |
| Max cruise speed | 815 km/h |
| Approach speed | 152 km/h |
| Travel range | 3,837 km |
| Fuel economy | Add |
| Service ceiling | 13,716 m |
| Rate of climb | 20.68 m/sec |
| Take off distance | 893 m |
| Landing distance | 724 m |
| Weights | |
| Max take off weight | 8,300 kg |
| Max landing weight | 7,665 kg |
| Max payload | 1,134 kg |
| Fuel tank capacity | 3,363 l |
| Baggage volume | 2.5 m³ |
| Dimensions | |
| Seats | 12 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | 1.55 m |
| Cabin width | 1.69 m |
| Cabin length | 7.01 m |
| Exterior length | 16.8 m |
| Tail height | 5.3 m |
| Fuselage diameter | 1.8 m |
| Wing span | 17 m |
| Wing tips | No Winglets |
