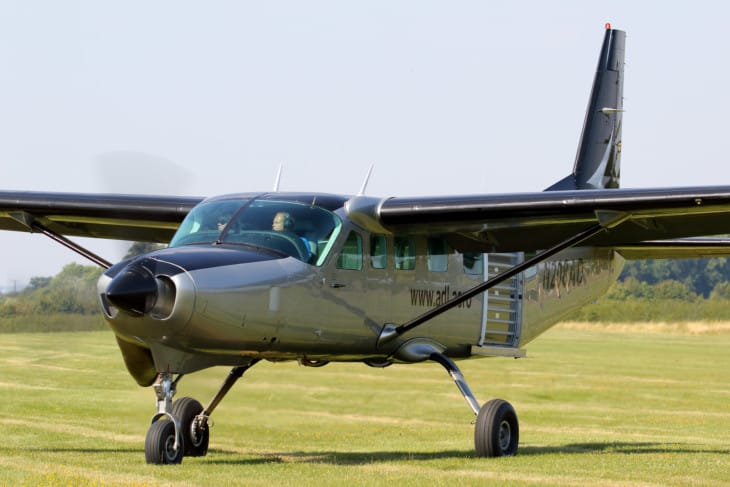

Cessna Grand Caravan [+]Compare [E]dit [H]istory

Object «Cessna Grand Caravan» was created due to

Add new object to «Cessna Grand Caravan» or move existing objects here.


Object «Cessna Grand Caravan» has attributes

Attribute Value
General
Manufacturer Cessna
Model Cessna Grand Caravan
Country United States
Manufactured from 1984 year
Manufactured to Add
Type Passenger Turbo Props
Icao C208
Performance
Engine 1x 1 X Pratt And Whitney PT6A- 114A
Power, hp 675 hp
Power, lbf Add
Avionics Garmin G1000 glass cockpit, Flight Stream 510 for wireless database uploads and flight plan transfers
Max cruise speed 344 km/h
Approach speed 232 km/h
Travel range 1,982 km
Fuel economy 1.575 km/l
Service ceiling 7,620 m
Rate of climb 6.27 m/sec
Take off distance 740 m
Landing distance 550 m
Weights
Max take off weight 3,629 kg
Max landing weight 3,538 kg
Max payload 1,393 kg
Fuel tank capacity 1,268 l
Baggage volume 0.89 m³
Dimensions
Seats 14
Seats - business class Add
Seats - first class Add
Cabin height 1.3 m
Cabin width 1.58 m
Cabin length 4.29 m
Exterior length 11.49 m
Tail height 4.3 m
Fuselage diameter 1.7 m
Wing span 15.9 m
Wing tips No Winglets
