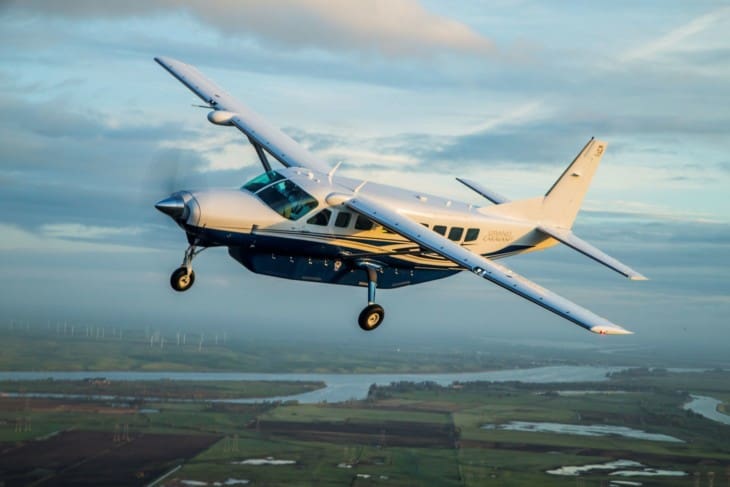

Cessna Grand Caravan EX [+]Compare [E]dit [H]istory

Object «Cessna Grand Caravan EX» was created due to

Add new object to «Cessna Grand Caravan EX» or move existing objects here.


Object «Cessna Grand Caravan EX» has attributes

Attribute Value
General
Manufacturer Cessna
Model Cessna Grand Caravan EX
Country United States
Manufactured from 2012 year
Manufactured to Add
Type Passenger Turbo Props
Icao C208
Performance
Engine 1x Pratt & Whitney Canada PT6A-140 867 SHP turboprop
Power, hp 867 hp
Power, lbf Add
Avionics Garmin G1000, GDC 72 Dual Air Data Computer (ADC), Garmin Relative Terrain/Obstacles
Max cruise speed 333 km/h
Approach speed Add
Travel range 1,689 km
Fuel economy Add
Service ceiling 7,620 m
Rate of climb 6.48 m/sec
Take off distance 658 m
Landing distance 560 m
Weights
Max take off weight 3,995 kg
Max landing weight 3,856 kg
Max payload 1,447 kg
Fuel tank capacity 1,268 l
Baggage volume 4.05 m³
Dimensions
Seats 14
Seats - business class 12
Seats - first class 1
Cabin height 1.37 m
Cabin width 1.63 m
Cabin length 6.5 m
Exterior length 12.7 m
Tail height 4.7 m
Fuselage diameter 1.8 m
Wing span 15.9 m
Wing tips No Winglets
