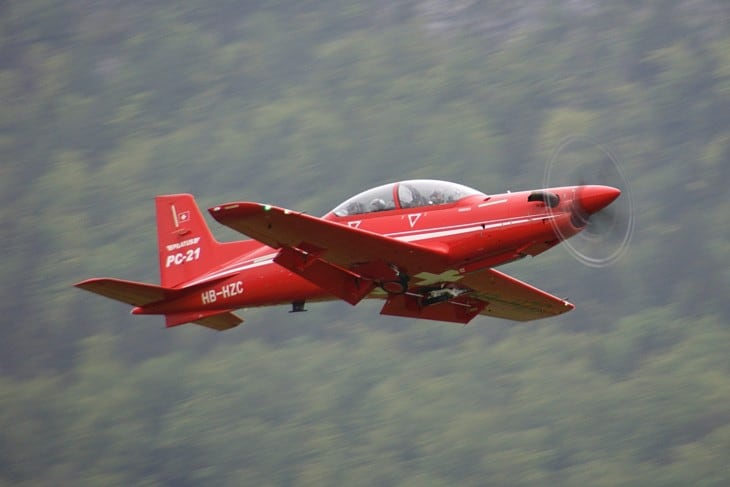

Pilatus PC-21 [+]Compare [E]dit [H]istory
Object «Pilatus PC-21» was created due to
Add new object to «Pilatus PC-21» or move existing objects here.
Object «Pilatus PC-21» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Pilatus Aircraft |
| Model | Pilatus PC-21 |
| Country | Switzerland |
| Manufactured from | 2002 year |
| Manufactured to | Add |
| Type | Military Trainers |
| Icao | Add |
| Performance | |
| Engine | 1x Pratt & Whitney PT6A-68B |
| Power, hp | 1,600 hp |
| Power, lbf | Add |
| Avionics | BARCO and Meggitt Avionics , Becker Avionics BXT6500 ADS-B transponder |
| Max cruise speed | 685 km/h |
| Approach speed | 150 km/h |
| Travel range | 1,333 km |
| Fuel economy | 0.553 km/l |
| Service ceiling | 7,620 m |
| Rate of climb | 21.59 m/sec |
| Take off distance | 725 m |
| Landing distance | 900 m |
| Weights | |
| Max take off weight | 4,250 kg |
| Max landing weight | 4,038 kg |
| Max payload | 1,150 kg |
| Fuel tank capacity | 549 l |
| Baggage volume | Add |
| Dimensions | |
| Seats | 2 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | Add |
| Cabin width | Add |
| Cabin length | Add |
| Exterior length | 11.22 m |
| Tail height | 3.75 m |
| Fuselage diameter | 1 m |
| Wing span | 9.11 m |
| Wing tips | No Winglets |
