Attribute | Value |
---|---|
General | |
Manufacturer | Piper Aircraft |

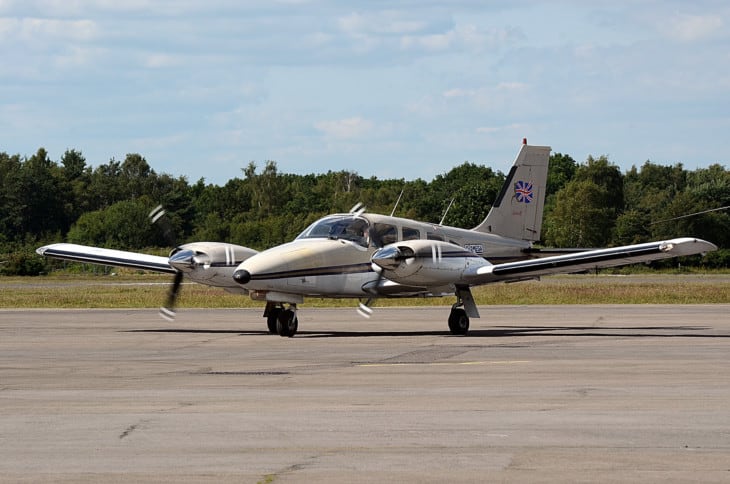

Model | Piper PA-34 Seneca |
Country | United States |
Manufactured from | 1971 year |
Manufactured to | Add |
Type | Twin Turboprops |
Icao | PA34 |
Performance | |
Engine | 2x 2 X Teledyne Continental TSIO-360-RB |
Power, hp | 220 hp |
Power, lbf | Add |
Avionics | GARMIN G1000 NXi AVIONICS SUITE with GFC 700 AutoPilot |
Max cruise speed | 370 km/h |
Approach speed | 124 km/h |
Travel range | 1,533 km |
Fuel economy | 7.813 km/l |
Service ceiling | 7,620 m |
Rate of climb | 7.42 m/sec |
Take off distance | 520 m |
Landing distance | 664 m |
Weights | |
Max take off weight | 2,155 kg |
Max landing weight | 2,047 kg |
Max payload | 604 kg |
Fuel tank capacity | 462 l |
Baggage volume | 0.4 m³ |
Dimensions | |
Seats | 6 |
Seats - business class | Add |
Seats - first class | Add |
Cabin height | 1.06 m |
Cabin width | 1.24 m |
Cabin length | 3.15 m |
Exterior length | 8.7 m |
Tail height | 3 m |
Fuselage diameter | 1.3 m |
Wing span | 11.9 m |
Wing tips | No Winglets |
