| Attribute | Value |
| General |
| Production from | 2001 year |
| Make | Yamaha |

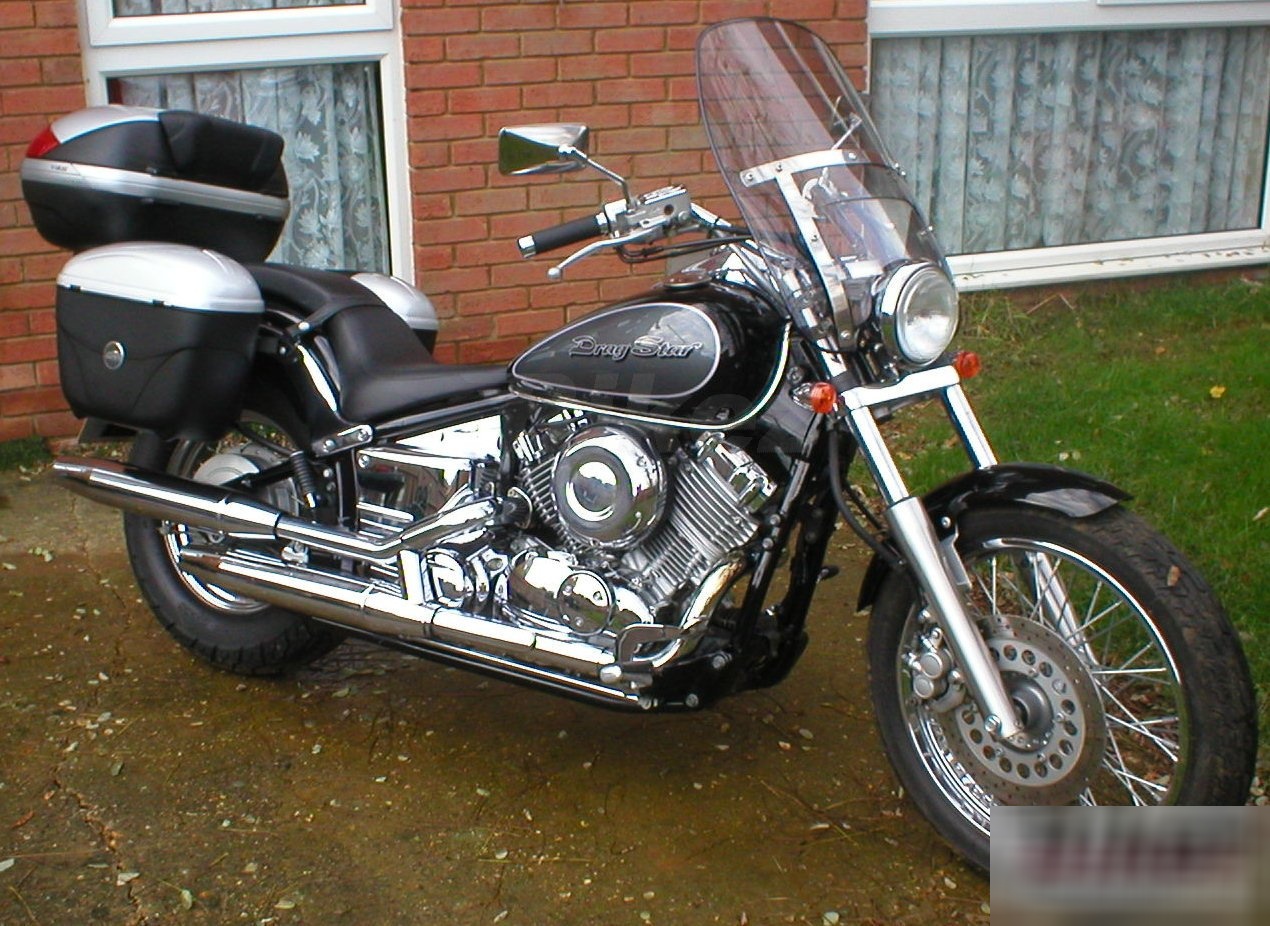

| Model | Yamaha XVS 400 DragStar |
| Category | Custom / cruiser |
| Engine and transmission |
| Engine type | V2, four-stroke |
| Valves per cylinder | Add |
| Fuel system | Carburettor. BDS28×2 |
| Engine details | Add |
| Displacement | 400 cm³ |
| Power | 23.5 kw |
| Max RPM | Add |
| Fuel consumption | Add |
| Cooling system | Air |
| Transmission type,final drive | Add |
| Torque | 32 Nm |
| Bore | 68 mm |
| Stroke | 55 mm |
| Gearbox | Add |
| Greenhouse gases | Add |
| Fuel control | Single Overhead Cams (SOHC) |
| Emission details | Add |
| Driveline | Add |
| Ignition | T.C.I. Formula |
| Clutch | Add |
| Lubrication system | Add |
| Compression | 9.7:1 |
| Exhaust system | Add |
| Chassis |
| Front suspension | Telescopic forks |
| Rear suspension | Swingarm Monocross |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Diameter | 282 mm |
| Frame type | Double cradle |
| Front tyre | 110/90-18 |
| Rear tyre | 170/80-15 |
| Seat | Add |
| Wheels | Add |
| Front wheel travel | 140 mm |
| Rear wheel travel | 113 mm |
| Trail | Add |
| Rake (fork angle) | Add |
| Other |
| Battery capacity | Add |
| Starter | Add |
| Color options | - metallic black
- metallic silver
|
| Carrying capacity | Add |
| Light | Add |
| Instruments | Add |
| Electrical Voltage | Add |
| Dimensions |
| Wheelbase | 1,610 mm |
| Kerb weight | Add |
| Dry weight | 225 kg |
| Power/weight ratio | 0.1044 |
| Overall height | 1,095 mm |
| Overall length | 2,340 mm |
| Overall width | 895 mm |
| Seat height | 660 mm |
| Alternate seat height | Add |
| Ground clearance | 145 mm |
| Front percentage of weight | Add |
| Rear percentage of weight | Add |
| Performance |
| Top speed | Add |
| Acceleration 0-100 km/h | Add |
| Length | Add |
| Reserve fuel capacity | Add |
| Fuel capacity | 15 l |
| Oil capacity | Add |
| Width | Add |
| Height | Add |
