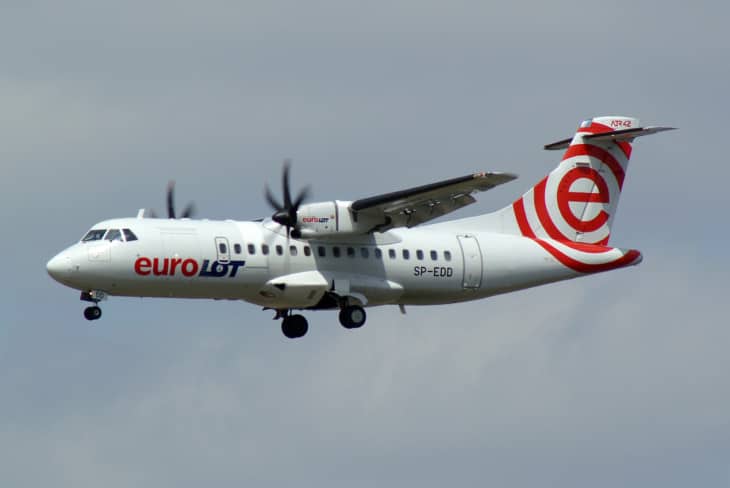

ATR 42-500 [+]Compare [E]dit [H]istory
Object «ATR 42-500» was created due to
Add new object to «ATR 42-500» or move existing objects here.
Object «ATR 42-500» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | ATR Aircraft |
| Model | ATR 42-500 |
| Country | France |
| Manufactured from | 1994 year |
| Manufactured to | Add |
| Type | Passenger Turbo Props |
| Icao | AT45 |
| Performance | |
| Engine | 2x 2 X Pratt & Whitney PW127E |
| Power, hp | 2,400 hp |
| Power, lbf | Add |
| Avionics | Dual Honeywell HT1000 FMS |
| Max cruise speed | 556 km/h |
| Approach speed | 193 km/h |
| Travel range | 1,326 km |
| Fuel economy | 1.243 km/l |
| Service ceiling | 7,620 m |
| Rate of climb | 9.4 m/sec |
| Take off distance | 1,165 m |
| Landing distance | 964 m |
| Weights | |
| Max take off weight | 18,600 kg |
| Max landing weight | 18,300 kg |
| Max payload | 5,450 kg |
| Fuel tank capacity | 5,602 l |
| Baggage volume | 10.8 m³ |
| Dimensions | |
| Seats | 48 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | 1.9 m |
| Cabin width | 2.57 m |
| Cabin length | 9.5 m |
| Exterior length | 22.67 m |
| Tail height | 7.59 m |
| Fuselage diameter | 2.7 m |
| Wing span | 24.57 m |
| Wing tips | No Winglets |
