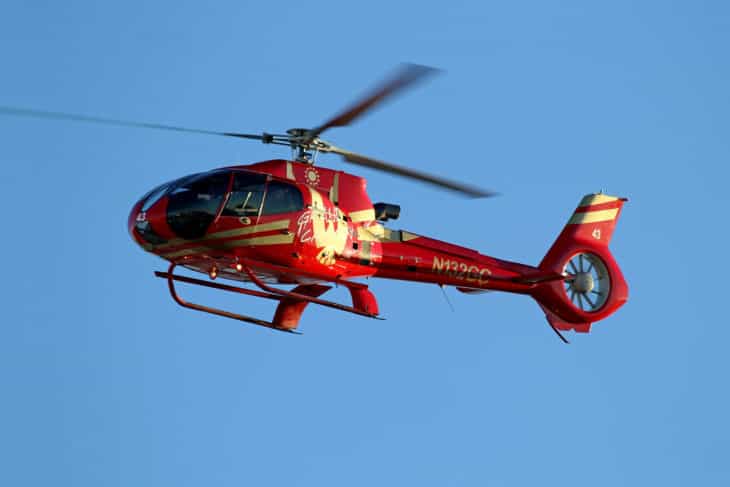

Eurocopter EC130 [+]Compare [E]dit [H]istory
Object «Eurocopter EC130» was created due to
Add new object to «Eurocopter EC130» or move existing objects here.
Object «Eurocopter EC130» has attributes [Show empty attributes][Hide empty attributes]
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Eurocopter |
| Model | Eurocopter EC130 |
| Country | France |
| Manufactured from | 2001 year |
| Manufactured to | Add |
| Type | Mid Size Helicopters |
| Icao | EC30 |
| Performance | |
| Engine | 1x 1 × Turbomeca Arriel 2B1 turboshaft |
| Power, hp | 847 hp |
| Power, lbf | Add |
| Avionics | VEMD |
| Max cruise speed | 287 km/h |
| Approach speed | Add |
| Travel range | 643 km |
| Fuel economy | 1.301 km/l |
| Service ceiling | 7,010 m |
| Rate of climb | 11.63 m/sec |
| Take off distance | Add |
| Landing distance | Add |
| Weights | |
| Max take off weight | 2,427 kg |
| Max landing weight | Add |
| Max payload | 1,160 kg |
| Fuel tank capacity | 541 l |
| Baggage volume | 1 m³ |
| Dimensions | |
| Seats | 7 |
| Seats - business class | Add |
| Seats - first class | Add |
| Cabin height | 1.3 m |
| Cabin width | 1.87 m |
| Cabin length | 2.19 m |
| Exterior length | 12.64 m |
| Tail height | 3.61 m |
| Fuselage diameter | 2.03 m |
| Wing span | 10.69 m |
| Wing tips | No Winglets |
